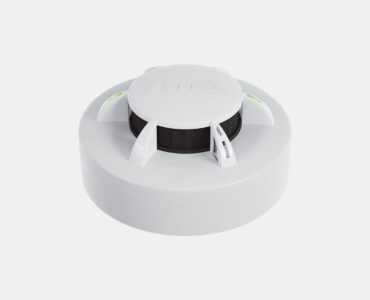

Addressable Heat & Smoke Detector

ZX-HSD 6000AD

Simultaneous use of two smoke and heat sensors, the possibility of selecting three levels of sensitivity for the smoke sensor (Low, Medium and High) and the possibility of selecting three thermal classes (A1R, A2S and BS) in accordance with the requirements of EN 54-5), the ability to Day / Night scenario and having an internal insulator is one of the most important advantages of ZITEX addressable combined smoke and heat detector. Design and construction of professional engineering with standard materials (specialized ABS) has made the body of this product to show good resistance against heat, shock, vibration and voltage fluctuations. The addressing process can also be done as Soft Addressing through the panel or manually through the Programmer.

It has an internal insulator
Software addressing (Soft Addressing) from the panel or using Programmer
Adjustable three-level sensitivity in software from the panel or software
Three thermally adjustable heat classes from the panel or software
False Alarm Probability Technology (F.A.P)
SCRIPT FOR SLIDER CAROUSEL

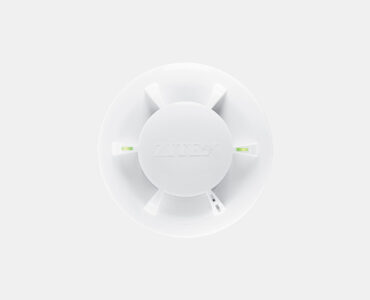

Addressable Heat & Smoke Detector

ZX-HSD 6000AD

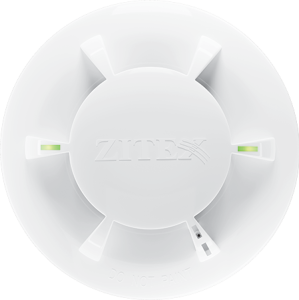

Addressable smoke and heat detector features are integrated in this combination detector, which can be mentioned as follows: specialized lockable chamber and dust protection filter and the possibility of processing the instantaneous temperature of the heat sensor. In this model, two LEDs are responsible for displaying the functional status of the detector (flashing green: normal and red fixed: alarm). The thermal classes defined for the detector in accordance with EN 54-5 are in two modes: fixed with suffix S (sensitive to constant temperature threshold) and incremental with suffix R (sensitive to rate of increase in temperature and constant temperature threshold). Identification feature is intended to identify the installation location of the detector inside the loop and can be activated / deactivated electronically in special circumstances. It is also possible to disable the LED detector in Standby mode through a specialized programming interface.

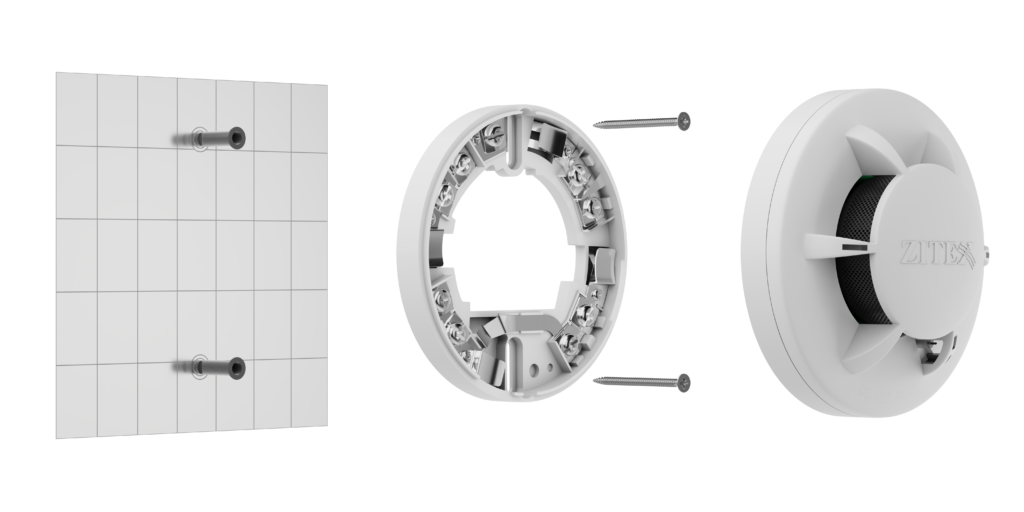

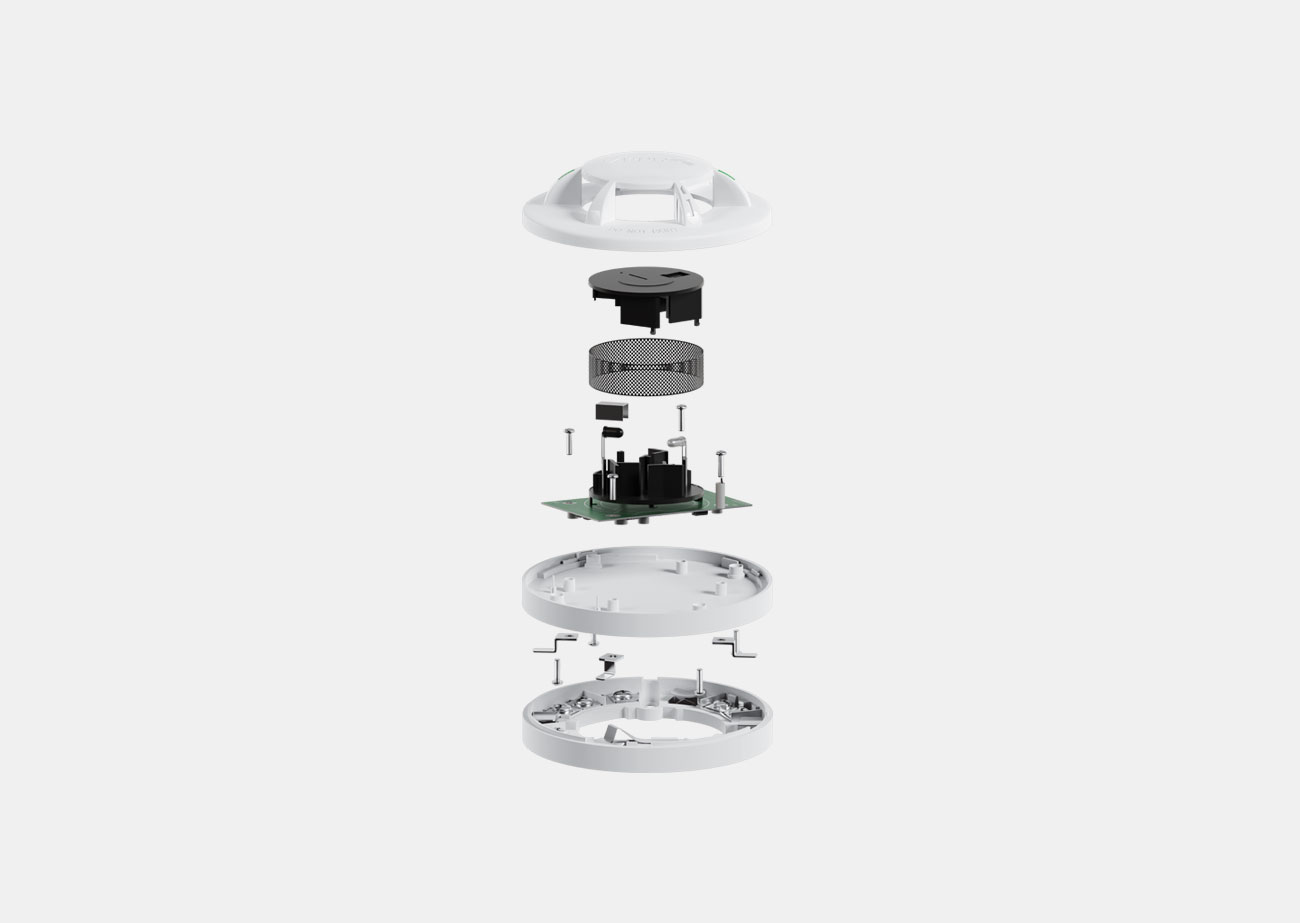

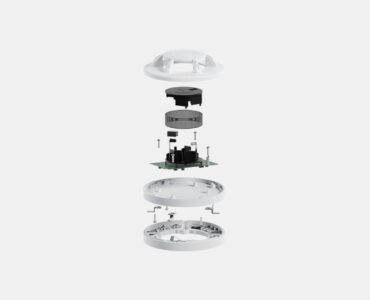

Sending and receiving data is done with two wires carrying the loop voltage as Serial Data. Providing enough space behind the detector for the entry of loop wires and remote indicators and double elevator terminals, chrome plating on all metal parts to protect against rust ensures easy, fast, safe and standard installation. The detector circuit is made of double-sided metallized fiberglass, and for safe operation in adverse environments, a layer resistant to moisture, vapors and corrosive materials has been used. Advanced SMT devices are responsible for assembling electronic components on these boards. . Reflector box and processors controlling ambient noise and the possibility of detecting real smoke from transient smoke with specialized algorithms and processing photoelectric signals, has achieved the goal of eliminating false noise and alarms (F.A.P Technology). Also, the smoke sensor of this detector has the ability to react quickly to white and black smoke due to the ignition of all materials.

دتکتور ترکیبی دود و حرارت آدرس پذیر ZX-HSD 6000 AD زیتکس

Design, production and multi-stage quality control of this product is done using the latest machinery and laboratory equipment. Golden guarantee and fast after-sales service and available software and hardware, product authentication tracking code in the form of a 16-digit serial number that can be inquired through the ZITEX electronics industry website and the mark of Iran’s national standard all confirm the quality and safe production are. The standards that have been considered for the design and production of this product are: National Standards of Iran No. 3708, 3709 and 3710 and International Standards EN 54-5, 54-7, 54-17.

دتکتور ترکیبی دود و حرارت آدرس پذیر ZX-HSD 6000 AD زیتکس

Product Introduction Video

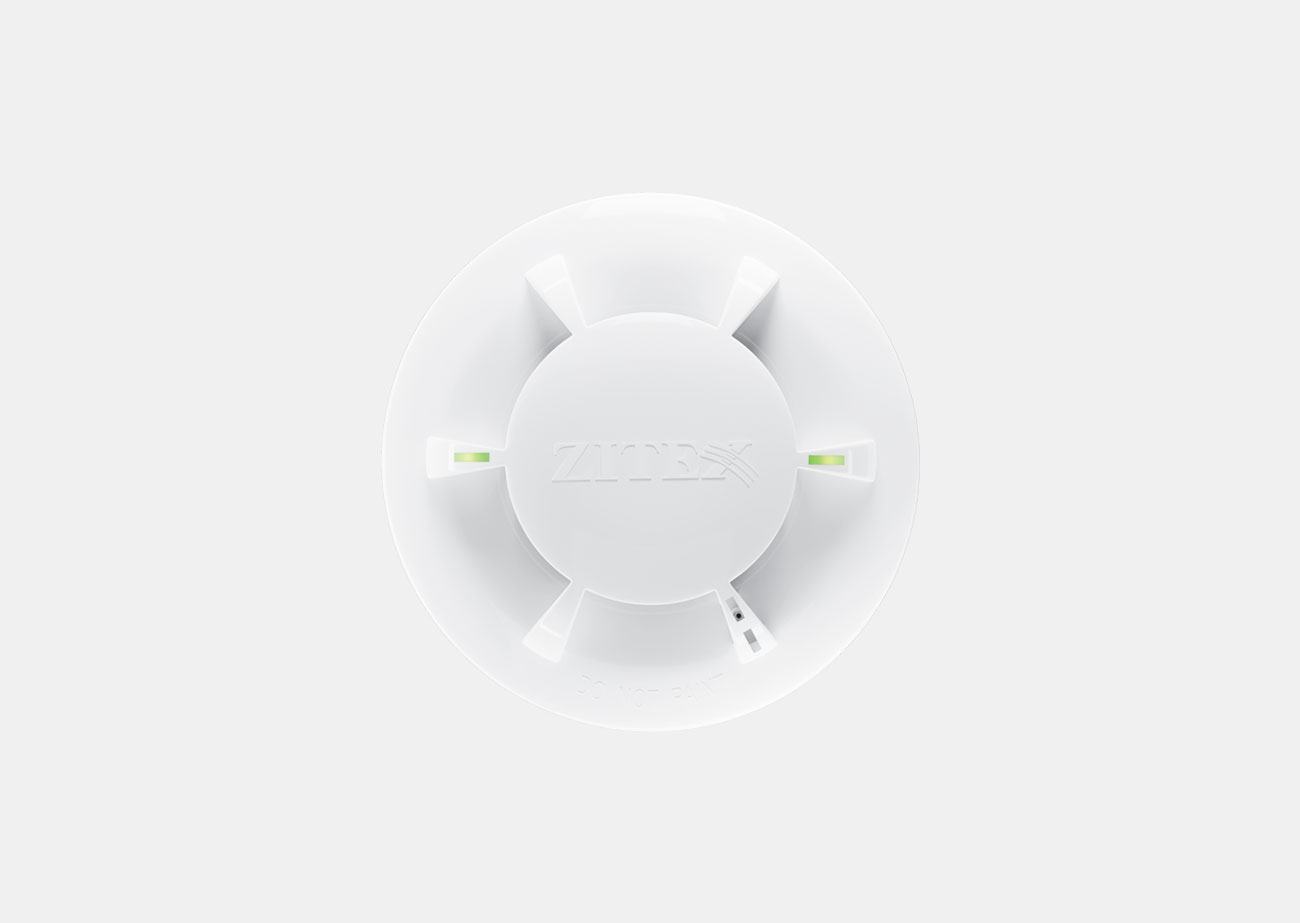

Product Size

دتکتور ترکیبی دود و حرارت آدرس پذیر ZX-HSD 6000 AD زیتکس

<        5.3 CM        >

دتکتور ترکیبی دود و حرارت آدرس پذیر ZX-HSD 6000 AD زیتکس

<        9.8 CM        >

Technical Specifications ZX-HSD 6000 AD
Design standard EN 54-5 , EN 54-7 , EN 54-17
Functional voltage 19-30 V D.C.
Flow in normal mode < 300 μA
Flow in fire alarm mode < 7 mA
Functional temperature -15 °C — +80 °C
Functional humidity (Non-condensing) 5% — 95% RH
Smoke sensitivity (Standard allowable range)
Low 0.15 dB/m
  Med 0.12 dB/m (0.05 — 2 dB/m)
High: 0.09 dB/m
Fire alarm conditions for thermal sensor
A1R : ≥10°C/min
A2S : ≥60°C
BS : ≥75°C
Area covered According to EN 5839
Degree of protection IP 40
Start time < 10 s
Dimensions 98 x 53 mm
Weight 139 g
