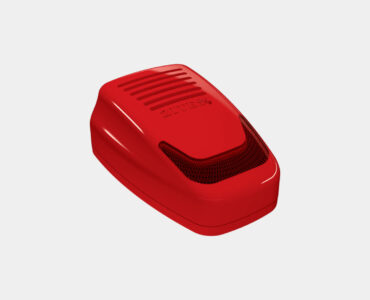

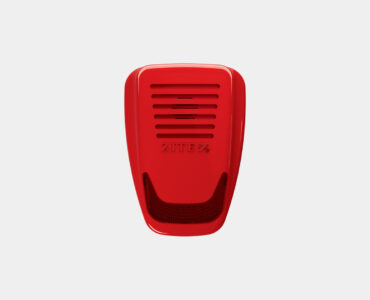

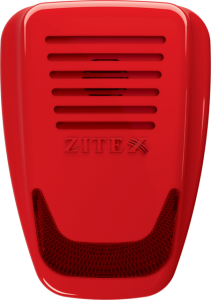

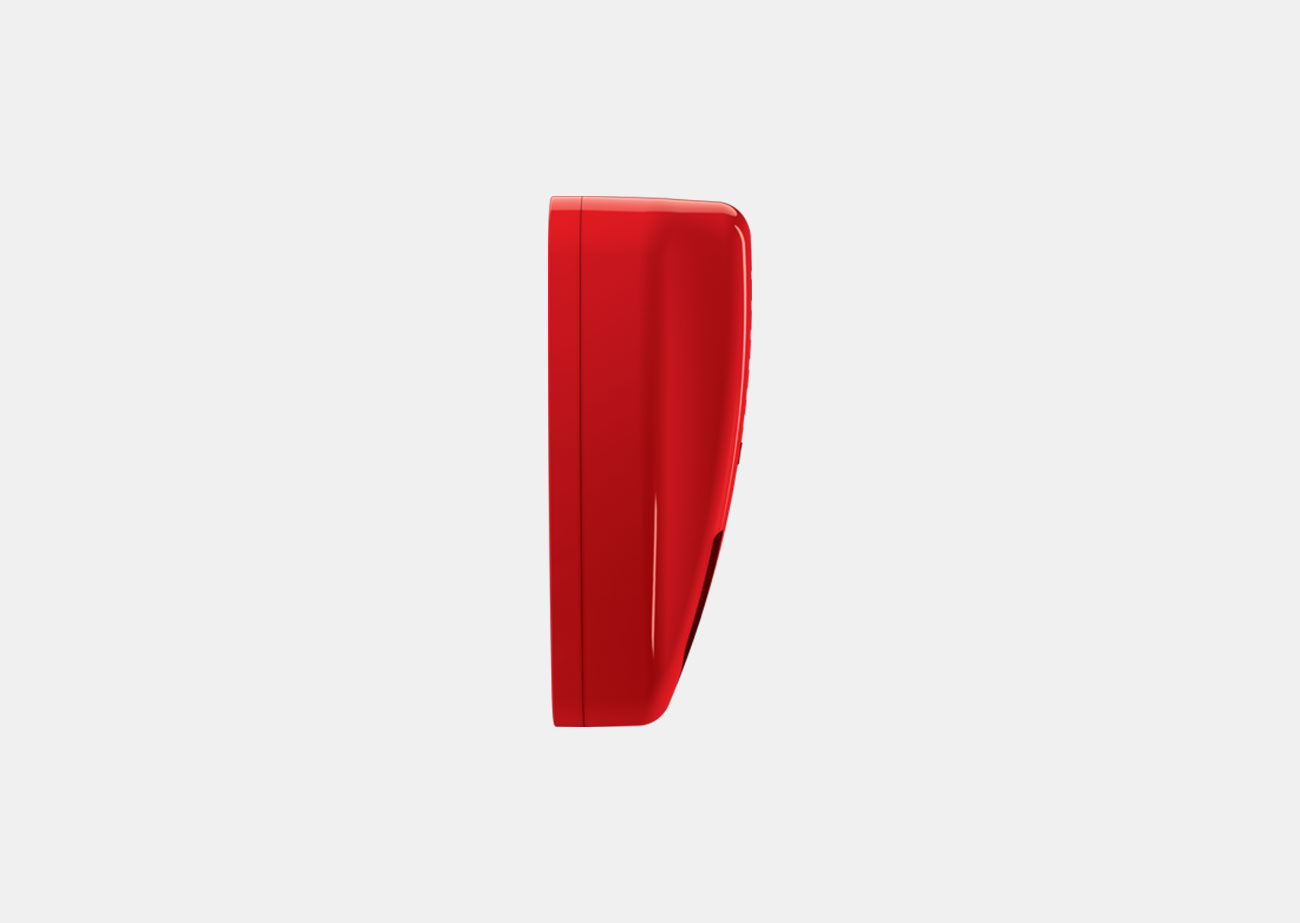

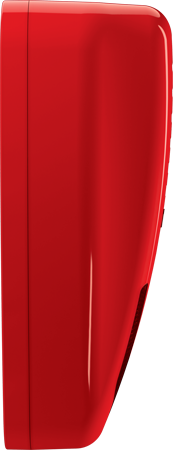

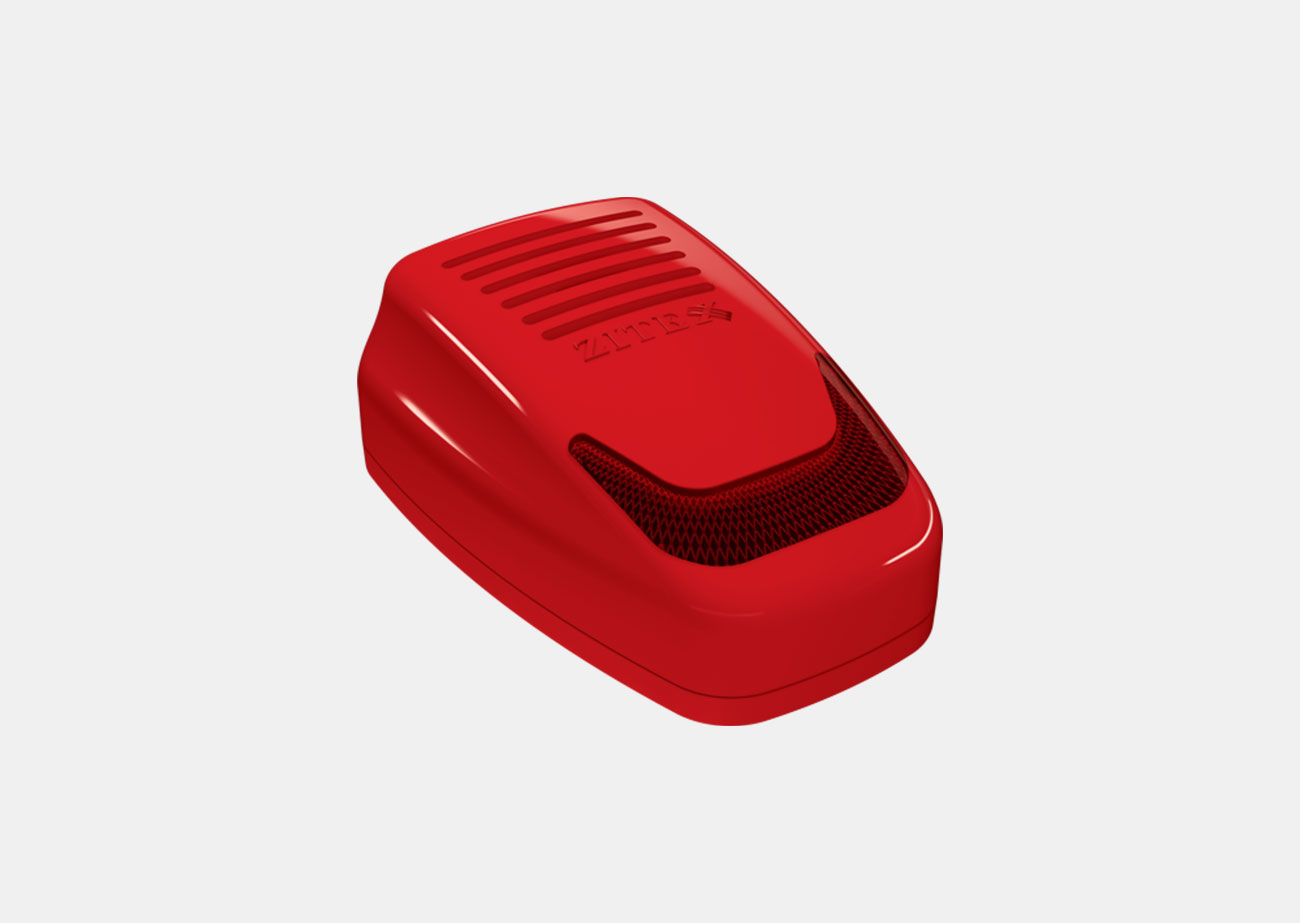

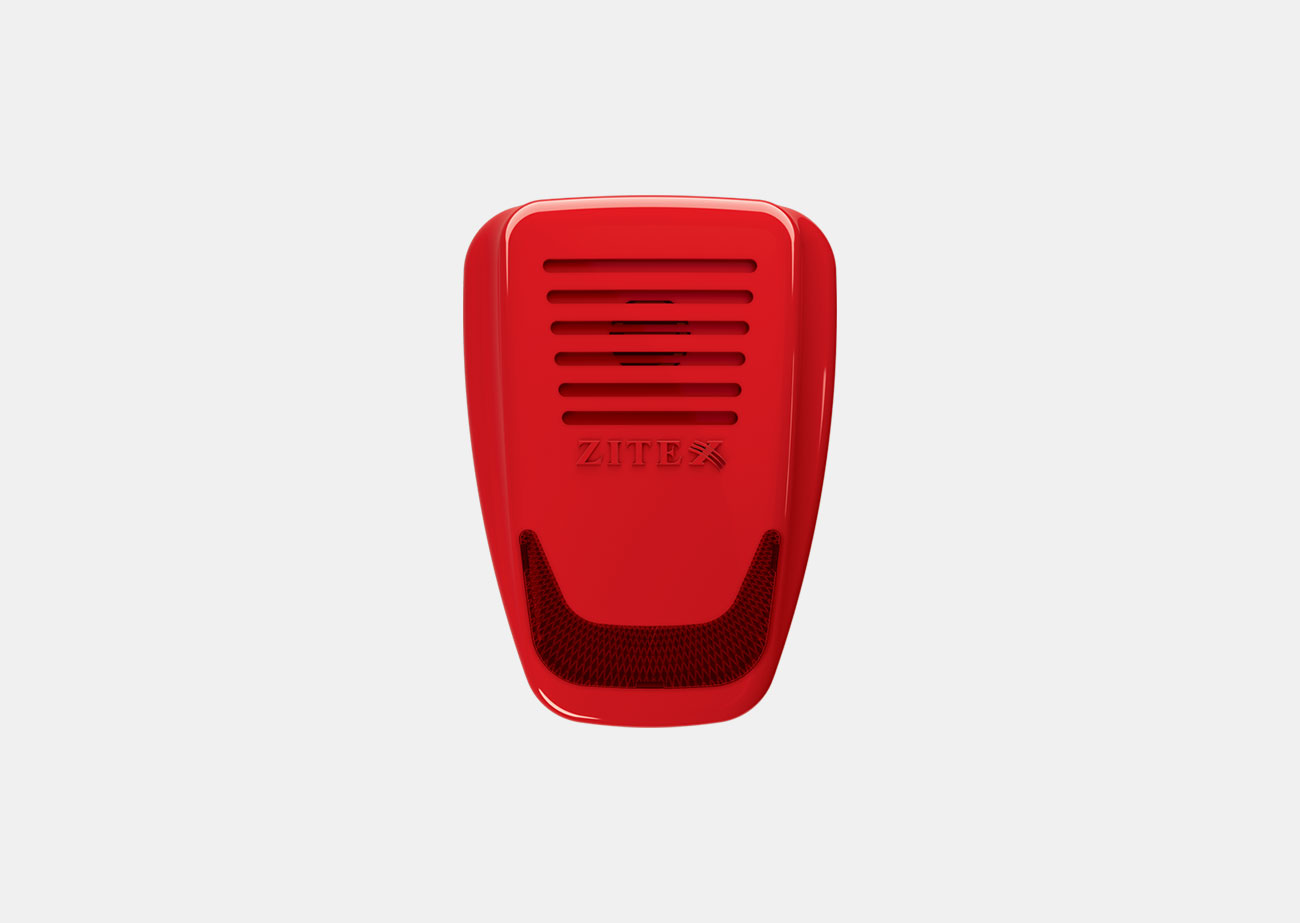

Conventional Strobe Siren

ZI-SS 81

Once the fire is detected, the alarm systems will be activated by receiving a command from the control panel. ZITEX ZI-SS 81 flasher siren has excellent performance reliability by creating visual and audible alarms. The construction of the body is done using specialized heat-resistant ABS, and due to the use of standard materials, impact and vibration do not affect the performance of the siren. At the back of the siren, separate terminals are provided for the entry and exit of wires, which makes installation quick, easy and standard.

Professional design and manufacturing (ABS)

Ceiling & wall mount

Reverse polarity protection

Sufficient spacing for proper wiring

Standard terminal for connections

False Alarm Protection Technology (F.A.P)

SCRIPT FOR SLIDER CAROUSEL

Conventional Strobe Siren

ZI-SS 81

All metal parts used in the chrome plating are protected against rust. Reverse polarity protection prevents damage to wires, alarms and circuits if the wires are connected incorrectly. One of the important advantages of this product is the lack of exposure to noise and environmental electromagnetic fields, which has been achieved through False Alarm Protection (F.A.P) technology.

The sound intensity and LED brightness in this model of flasher siren are in accordance with the standard requirements and the product is suitable for use in indoor environments. The basis of design and production is compliance with the requirements of National Standard No. 3-18687 and International Standard EN 54-3. Different climatic conditions (heat, cold, humidity and corrosive environments) do not interfere with the normal operation of the flasher siren. The electronic components used in this product are designed in such a way that the volume does not decrease at different angles after operation for a long time and remains in the standard range.

Like all ZITEX fire alarm products, the latest machinery and equipment have been used in the design, production and quality control of this product. Gold guarantee and after-sales service is ZITEX’s commitment to all its products. Using the 16-digit tracking code on the back of the product, its authenticity can be inquired through the ZITEX electronics industry website.

Product Size

< 4 CM >

< 10.7 CM >

Operating Humidity(Non-condensing) 5% — 95% RH

Technical Specifications	ZI-SS 81
Design standard	BS EN-54-3
Operating Voltage	24 ± 3 v
Static Current at 24 VD.C.24V D.C.	0 mA
Alarm Current at 24 VD.C.24V D.C.	≤ 30 mA
Frequency range	800 Hz – 970 Hz
Color Strob	5 Red LEDs
Operating temperature range	-15 °C — +80 °C
Average sound level in 1m	100±5 dB
Operating Humidity	(Non-condensing) 5% — 95% RH
Environmental type	Indoor use Type A
IP Rating	IP 21 C
Material	Heat resistant ABS body
Dimensions	107 x 77 x 40 mm
Weight	80 g
