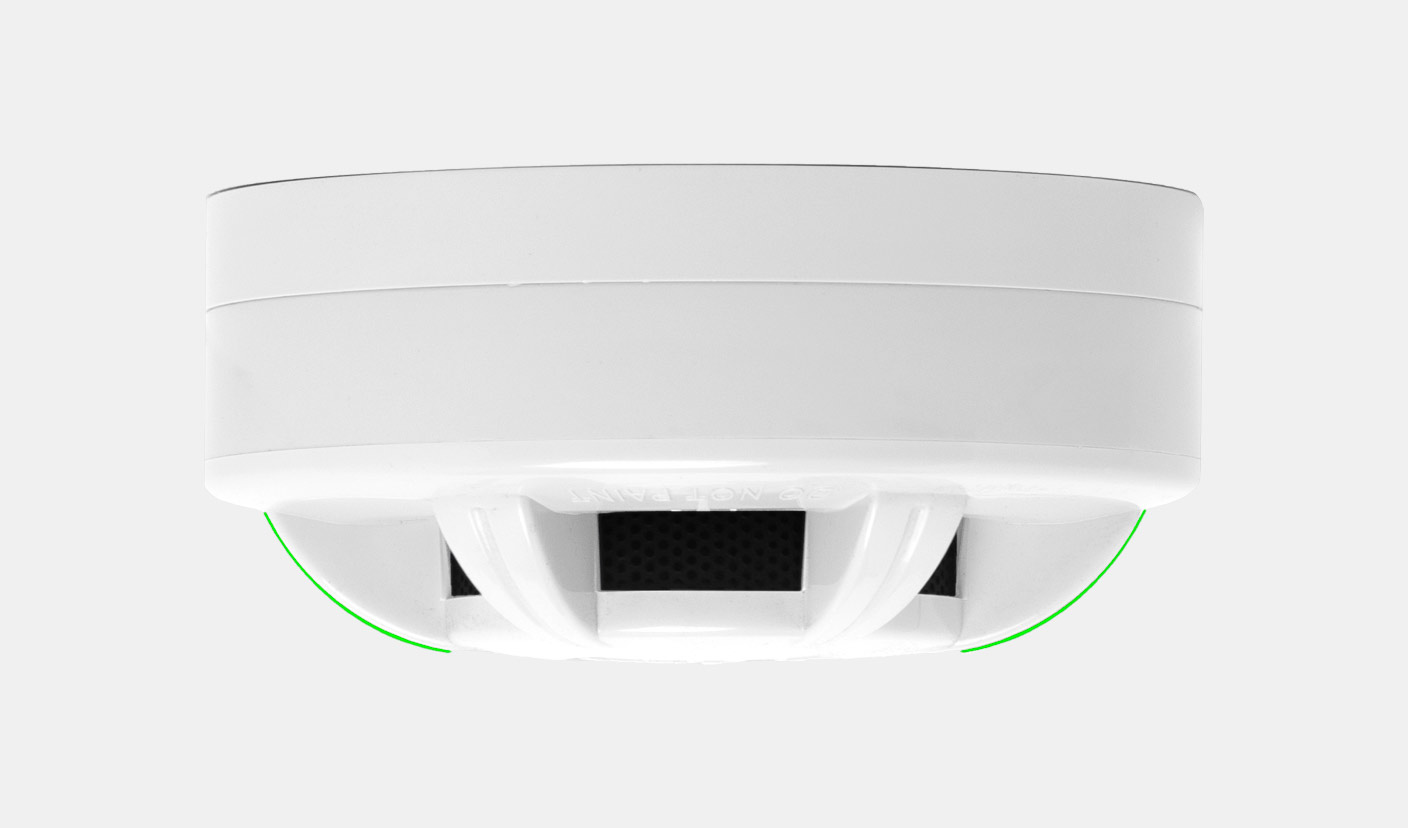

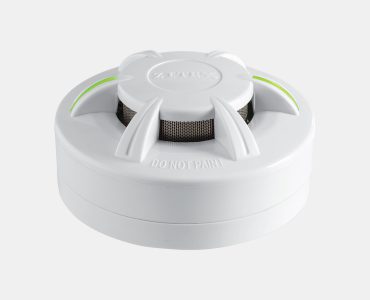

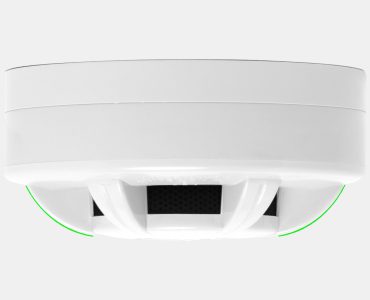

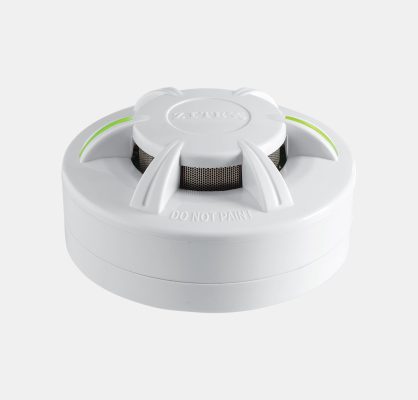

Conventional Smoke Detector

ZI-S 817

The first sign of a fire is smoke, and therefore the most widely used product in fire alarm systems is the smoke detector. The absorption coefficient of the smoke detectors model ZI-S 817 is within the standard allowable range and reacts quickly to all types of smoke (white and black smoke due to ignition of all materials). The basis of this detector is based on photoelectric signal processing. Smoke enters the detector chamber causing light emitted from the transmitter to reach the receiver and a fire alarm is made. The body of the detector is made of specialized heat-resistant ABS, which with a beautiful design, fits the architecture of buildings.
Double-layer metallized fiberglass circuit with moisture, vapor and corrosion resistant layer
Production of electronic boards using modern equipment based on SMT technology
False Alarm Probability Technology (F.A.P)
Reflector box and processors controlling ambient noise to eliminate false alarms

Conventional Smoke Detector

ZI-S 817

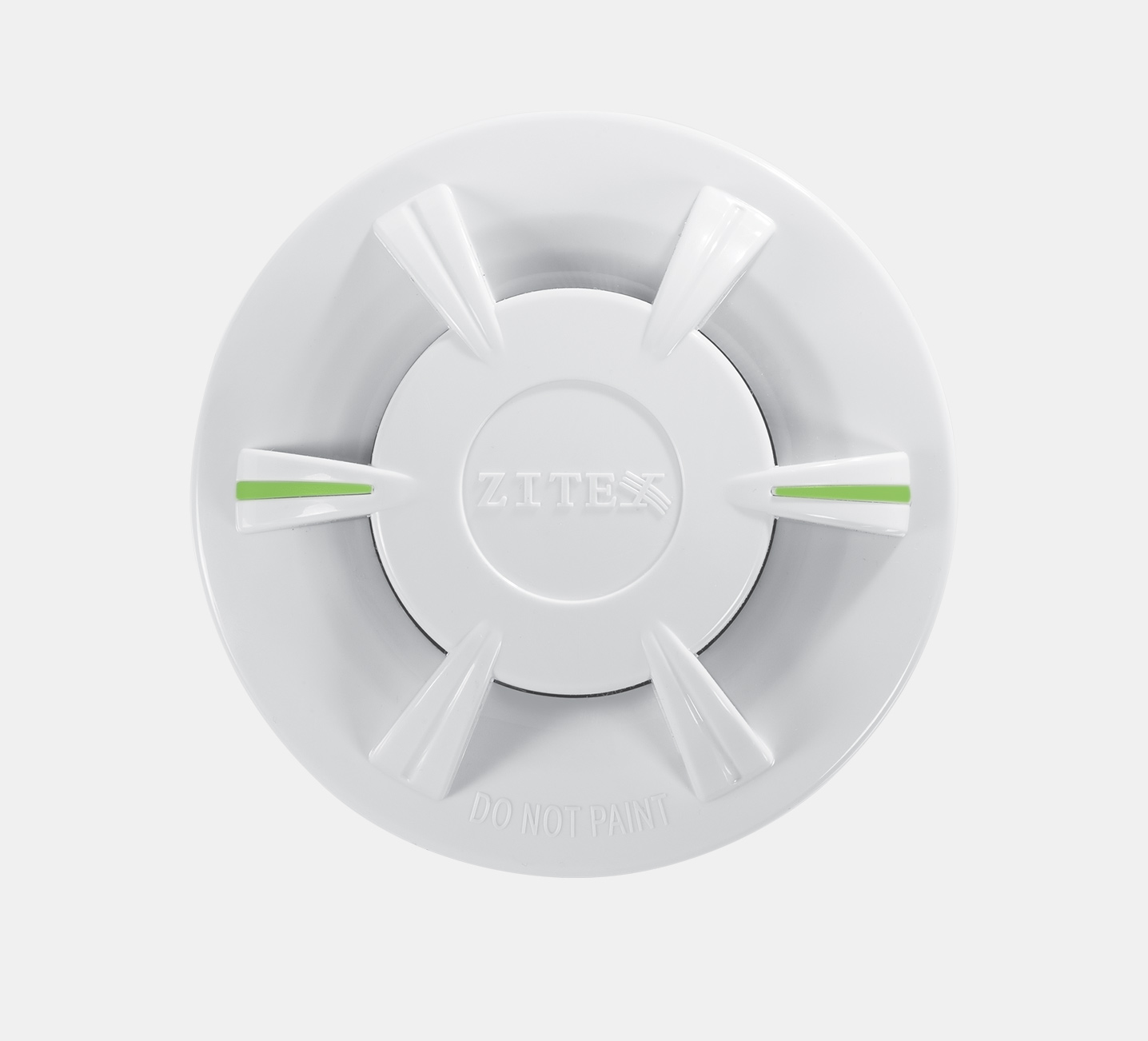

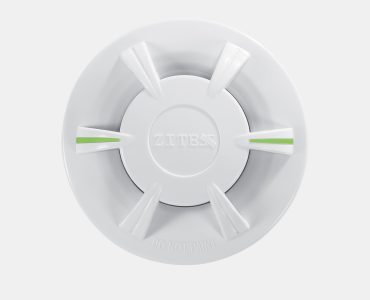

Two 360-degree LEDs show detector performance, with a green flash indicating normal operation and a solid red LED indicating fire status. On the back of the detector, enough space is provided for the entry of zone wires and the remote indicator, and this allows the installer to easily install the detector. In addition, double elevator contacts allow connections to be made as standard. Ambient noise, and in particular electromagnetic noise, is the most important cause of false alarms in fire alarm systems.


The software and hardware arrangements provided on the detector provide complete protection against these noises. F.A.P technology does not allow false alarms to occur at all. Reflector boxes and microprocessors are what give this feature to the detector. Therefore, we can have 100% confidence in the performance of the detector. Moisture and corrosive substances are one of the most unavoidable components of environmental conditions. The protective layer on the circuits and the chrome plating on the metal parts prevent corrosion and disturbance in the detector operation. The circuits used are two-layer metallic fiberglass and SMT technology has been used to assemble the components on the circuits.

Modern equipment and machinery have been used for production and quality control of the product. The golden guarantee will create additional peace of mind for the consumer; In addition, fast and accessible hardware and software after-sales service is a ZITEX commitment for customers. 16-digit serial on products allows the customer to control the authenticity of the product. The basis of design and production of smoke detector is the national standard of Iran No. 3708 and 3709 and the international standard EN 54-7.

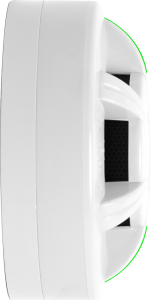

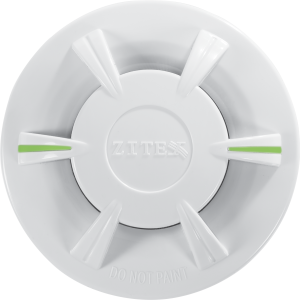

Product Size


<        5 CM        >


<        9.8 CM        >

Technical Specifications ZI-S 817
Detector class Photoelectric Smoke Detector
Circuit generation technology SMT
Design standard BS EN-54-7 and ISIRI 3708 , 3709
Voltage range 12-32 V D.C.
Current in normal voltage 24V D.C. ≤50 μA
Current in alarm mode at voltage 24V D.C. ≤20 mA
Operating temperature range -15 °C — +80 °C
Functional humidity range (Non-condensing) 5% — 95% RH
Smoke sensitivity (Standard allowable range) 0.15 dB/m (0.05 — 2dB/m)
Initial setup time 5 Sec
Area covered According to EN 5839
Degree of protection IP 40
Ability to see LEDs 360 °
LED function in normal mode Flashing Green
LED function in alarm mode Fixed Red
Wiring without remote 2-wires
Wiring with remote 3-wires
Body Material Heat resistant ABS body
Dimensions 98 x 50 mm
Weight 146 g
