Addressable Siren

ZX-S 5000 AD

Fire alarms are responsible for creating alarms after fire detection. ZITEX addressable siren has two distinct tones for alarm and discharge modes and three sound levels (Low, Medium and High) that can be set and selected from the panel or through CONFIGURATION software. Also, due to the installation of internal insulators in the siren circuit, in the event of a short circuit in the loop wiring path, there will be no disruption in the operation of the rest of the fire alarm system. The addressing mechanism is in two ways: Soft Addressing process through panel or Manual addressing process through Programmer; Of course, Set Address and Self-Addressing options are also available for all ZITEX addressable devices.

It has an internal insulator

Software addressing (Soft Addressing) from the panel or using Programmer

Two tons of selectable sound for alarm and discharge modes

Three sound levels to choose from depending on the needs of the project

False Alarm Probability Technology (F.A.P)


Addressable Siren ZX-S 5000 AD

The advantages of ZITEX ZX-S 5000 AD fire alarm software are: Ability to be placed in Common / Zonal scenario, electronic activation / deactivation of the device, Identification capability to identify the location inside the loop, protection against reverse polarity and sending and receiving Data in the form of Serial Data via loop wires (which also provide two-way device voltage). It is possible to install wall and ceiling in this siren model and the sound intensity requirements have been observed in accordance with the relevant standard.

آژیر آدرس پذیر ZX-S 5000 AD زیتکس

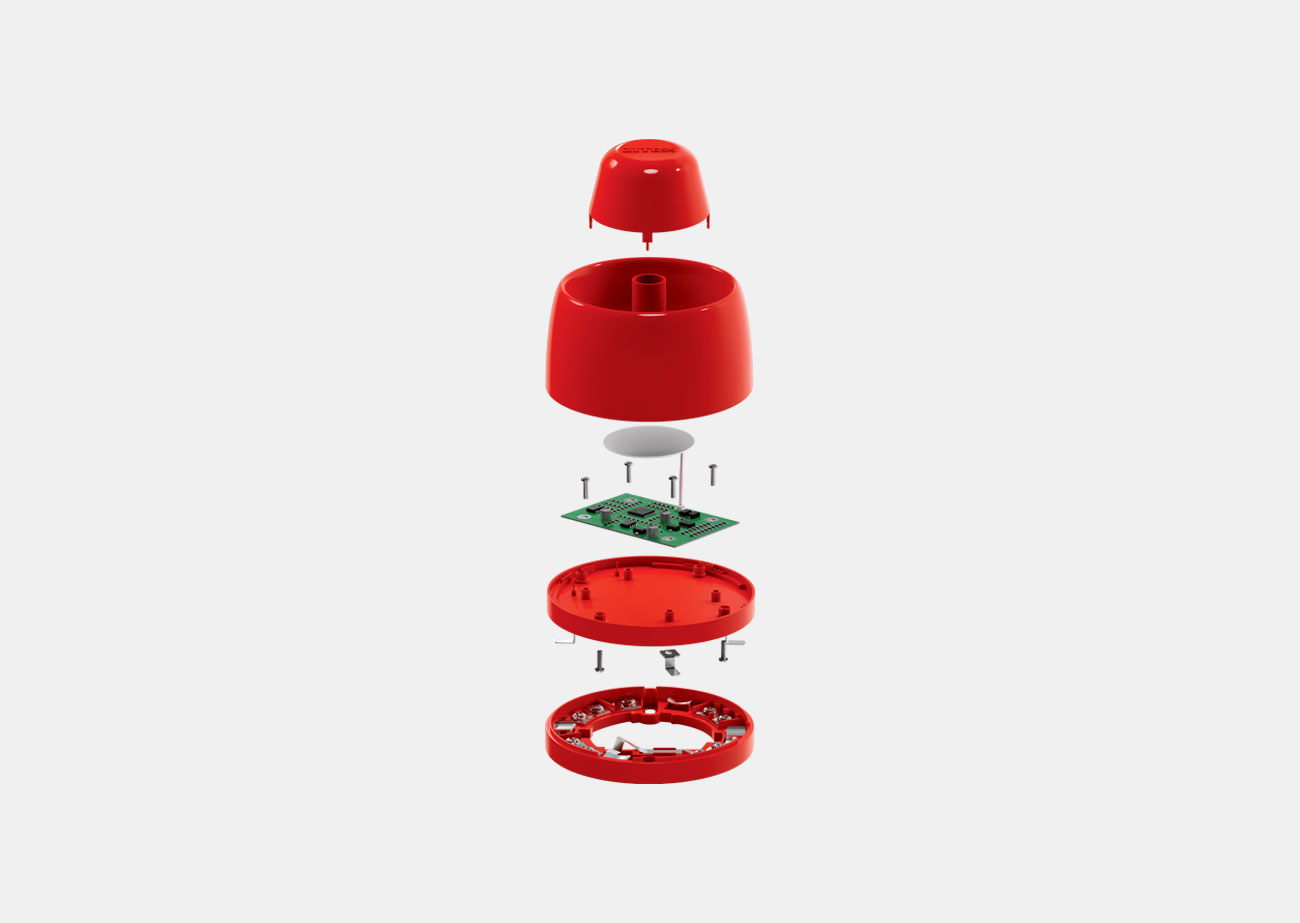

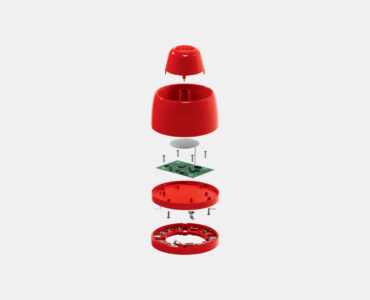

The base used to install the siren is similar to the detector base with double elevator contacts. Behind the siren, enough space is provided for the entry of loop wires and all metal parts are covered with chrome plating; All these advantages guarantee easy, fast, principled and standard installation. The siren circuit is made of two-layer metallic fiberglass and SMT technology has been used to assemble electronic components on the board. In addition, by applying a layer resistant to moisture, vapors and corrosive substances in the circuit, optimal performance can be achieved in the worst climatic conditions. Specialized programming and utilization of F.A.P technology to eliminate false noises and alarms are important features of this product.

Iranian National Standard No. 3-18687 and International Standard EN 54-3, 17 are considered as the basis for the design and production of this product. In all stages of design, production and quality control, the most up-to-date laboratory machines and equipment have been used. To increase consumer confidence, the golden guarantee and after-sales service of fast and available hardware and software are among the commitments of ZITEX to customers. The Iranian standard mark is a proof of the quality of ZITEX products.

آژیر آدرس پذیر ZX-S 5000 AD زیتکس

Product Size

آژیر آدرس پذیر ZX-S 5000 AD زیتکس

<        9.8 CM        >

آژیر آدرس پذیر ZX-S 5000 AD زیتکس

<        8.1 CM        >

Technical Specifications ZX-S 5000 AD
Design standard BS EN-54-3 , EN 54-17
Color Red
Functional voltage 19-30 V D.C.
Current in fire alarm mode (mA) Tone 1 & 2: Low: 5 Med: 8 High: 12
Audio output at a distance of 1 meter (dB) Tone 1 & 2: Low: 75±5 Med: 80±5 High: 85±5
Flow in normal mode < 1 mA
Functional temperature -15 °C — +80 °C
Functional humidity (Non-condensing) 5% — 95% RH
Degree of protection IP 21C
Dimensions 98 x 81 mm
Weight 200 g
