Conventional Smoke Detector

ZI-S 820

The most widely used fire alarm product in buildings is the smoke detector. The first sign of a fire is the smoke from it, and its timely detection can prevent the loss of life and property.
Zitex ZI-S 820 Smoke Detector, by processing photoelectric signals, detects the presence of white and black smoke in the environment at high speed and warns. The body of this detector is designed and manufactured using specialized heat-resistant ABS. Two-way 360-degree function indicator (flashing green in normal mode and solid red in fire mode) allows the detector to be viewed from all angles. Enough space provided behind the detector, as well as the use of double elevator terminals, ensures standard wiring.

Double-layer metallized fiberglass circuit with moisture, vapor and corrosion resistant layer
Production of electronic boards using modern equipment based on SMT technology
False Alarm Probability Technology (F.A.P)
Reflector box and processors controlling ambient noise to eliminate false alarms

Conventional Smoke Detector ZI-S 820

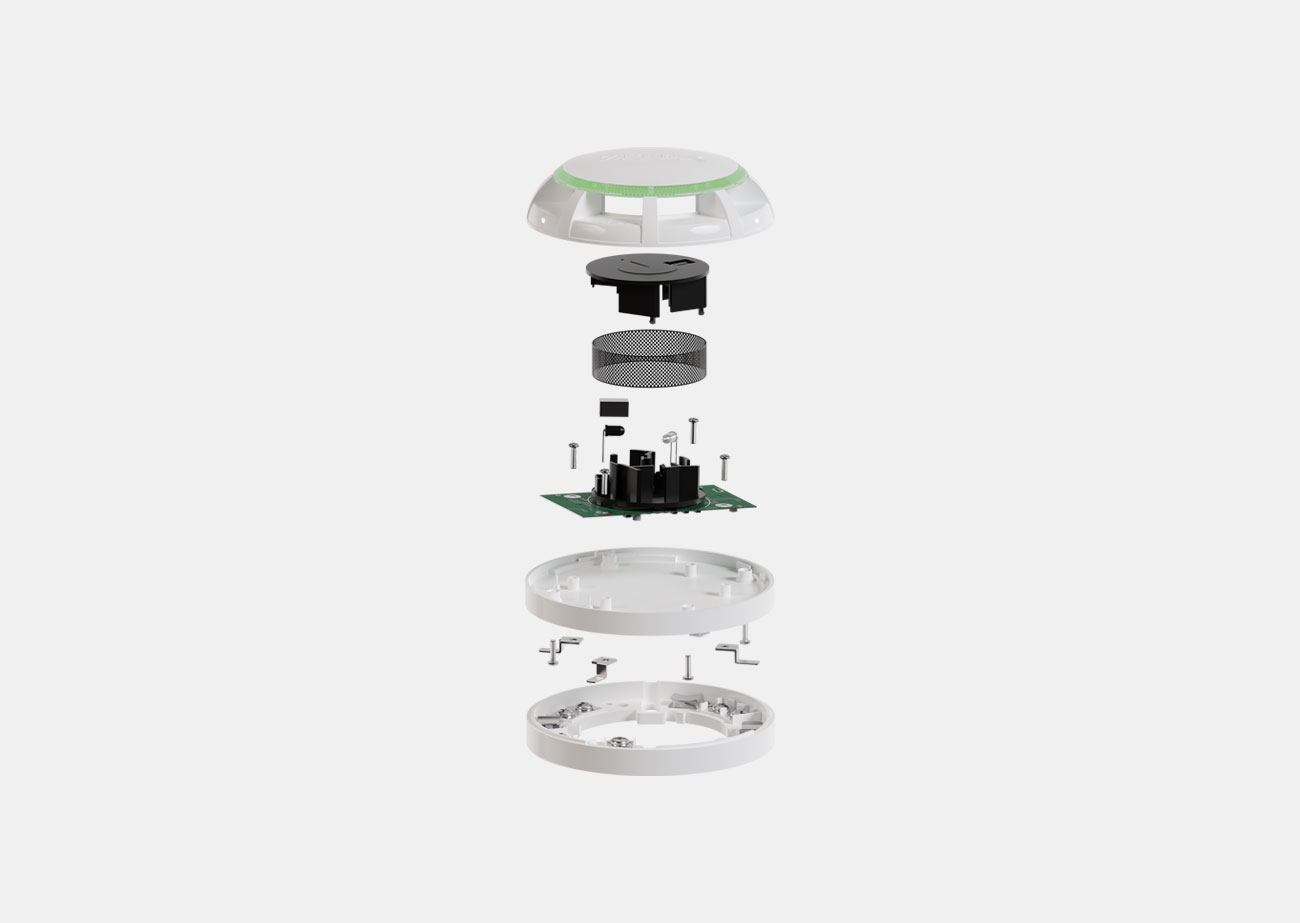

The technical features of this detector model include specialized lockable chamber and dust protection filter, reverse polarity protection, reflector box and environmental noise control processors to eliminate false alarms (F.A.P technology) and specialized real smoke detection processors. He pointed out briefly.

دتکتور دودی ZI-S 820 زیتکس

Chrome plating has been applied to all metal parts to protect them from rust. The circuit of this detector is of metallic fiberglass type and the technology of assembling electronic components on it is SMT. To have optimal performance in the worst climatic conditions, a layer resistant to moisture and corrosive materials is predicted on the circuit.

Multi-stage design, production and quality control is performed by the latest laboratory machines and equipment. In addition, the golden warranty and after-sales service of fast and available hardware and software have made the end consumer not have to worry about supporting their fire alarm systems. To control the authenticity of the product, an exclusive tracking code is provided on the product label. Product design and manufacturing standard is the national standard of Iran No. 3708 and 3709 and the international standard EN 54-7.

دتکتور دودی ZI-S 820 زیتکس

Product Size

دتکتور دودی ZI-S 820 زیتکس

<        5.2 CM        >

دتکتور دودی ZI-S 820 زیتکس

<        9.8 CM        >

Technical Specifications ZI-S 820
Detector class Photoelectric Smoke Detector
Circuit generation technology SMT
Design standard BS EN-54-7 and ISIRI 3708 , 3709
Voltage range 12-32 V D.C.
Current in normal voltage 24V D.C. ≤50 μA
Current in alarm mode at voltage 24V D.C. ≤20 mA
Operating temperature range -15 °C — +80 °C
Functional humidity range (Non-condensing) 5% — 95% RH
Smoke sensitivity (Standard allowable range) 0.15 dB/m (0.05 — 2dB/m)
Initial setup time 5 Sec
Area covered According to EN 5839
Degree of protection IP 40
Ability to see LEDs 360 °
LED function in normal mode Flashing Green
LED function in alarm mode Fixed Red
Wiring without remote 2-wires
Wiring with remote 3-wires
Body Material Heat resistant ABS body
Dimensions 98 x 52 mm
Weight 157 g
