Conventional Smoke Detector

ZI-S 815

The smoke detector, as one of the main components of the fire alarm system, is responsible for detecting smoke as the initial sign of a fire. After the smoke is detected, a signal is sent through the detector to the fire alarm center, which can generate visual or audible alarms through other system components. The basis of ZITEX smoke detectors is the processing of photoelectric signals (ie, a rapid response to the sudden scattering of smoke inside the chamber).

Double-layer metallized fiberglass circuit with moisture, vapor and corrosion resistant layer
Production of electronic boards using modern equipment based on SMT technology
False Alarm Probability Technology (F.A.P)
Reflector box and processors controlling ambient noise to eliminate false alarms

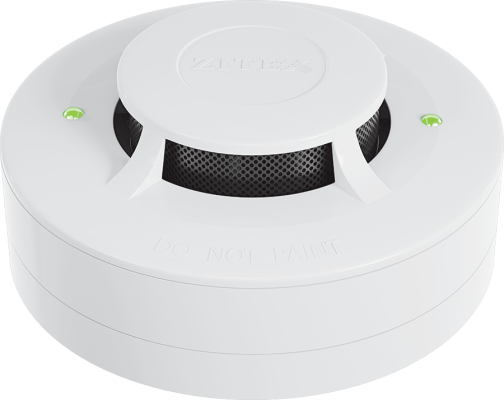

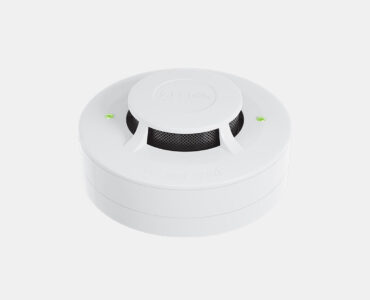

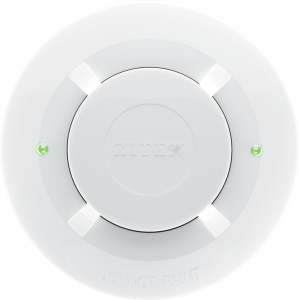

Conventional Smoke Detector ZI-S 815

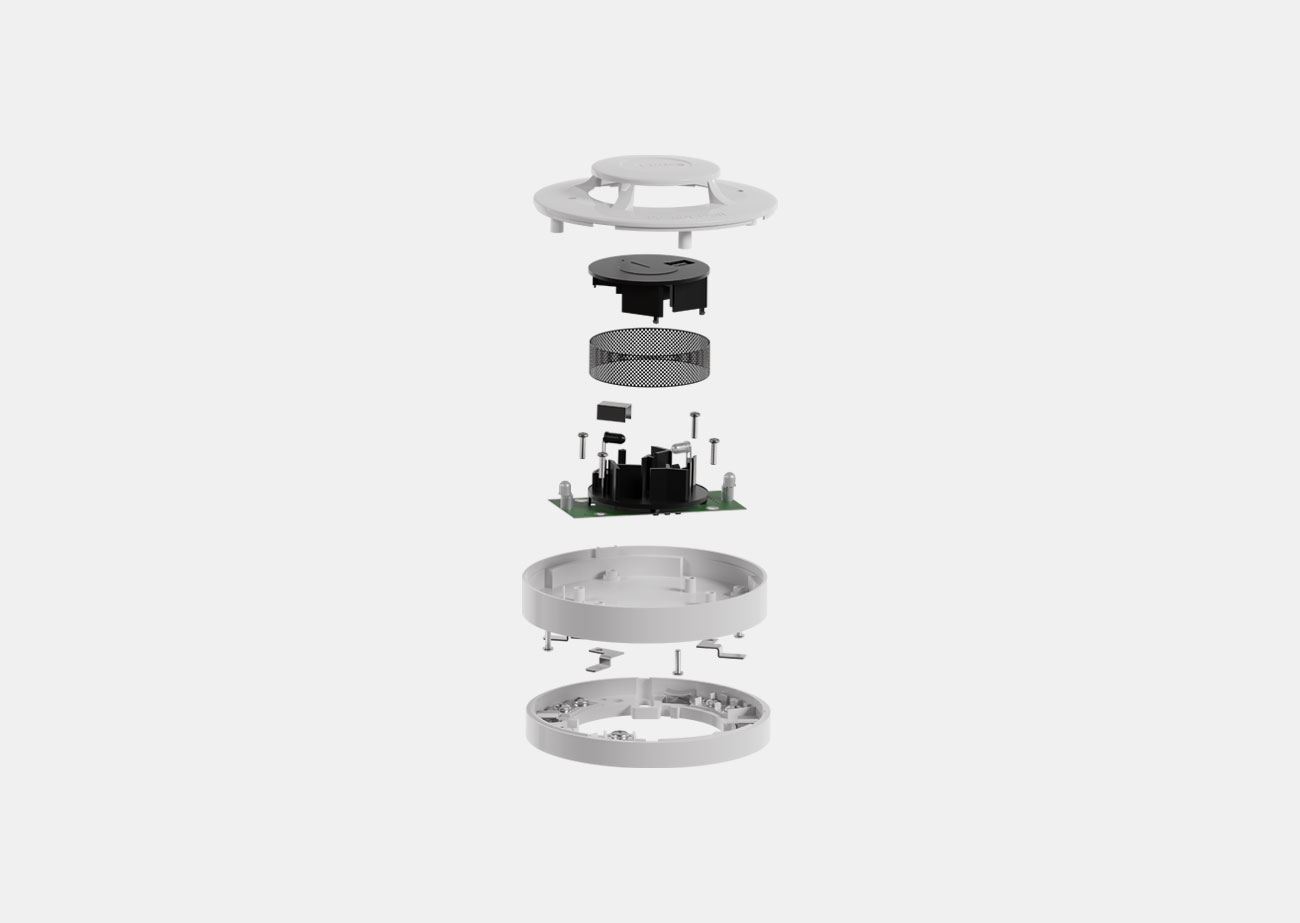

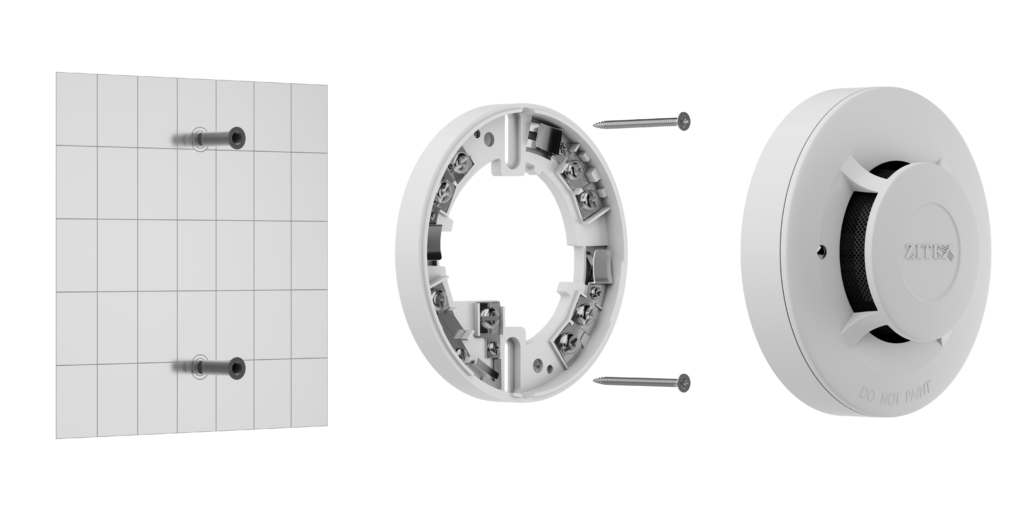

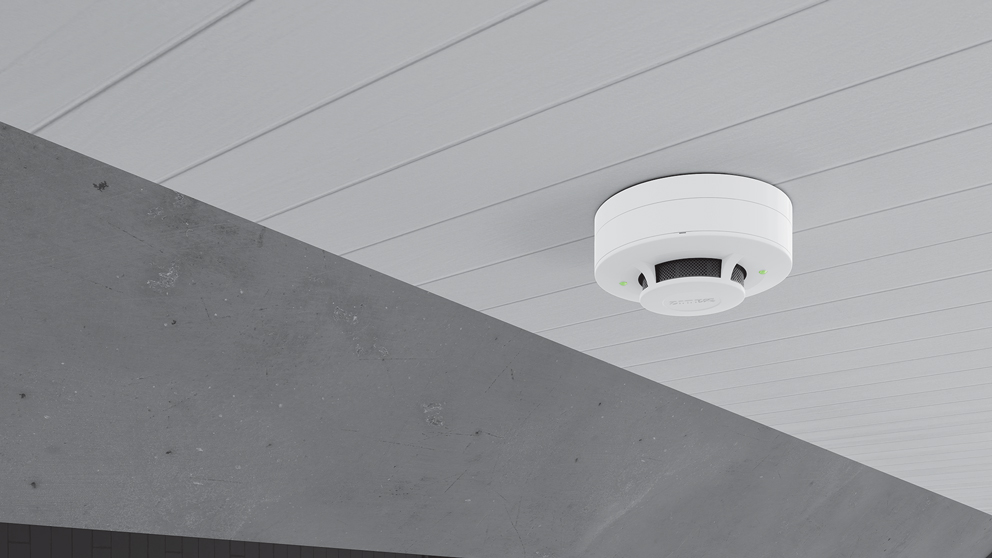

The body of the ZITEX Conventional Smoke Detector, model ZI-S 815, is made of heat-resistant ABS and is designed in such a way that the body shows good resistance to impact and vibration. Double elevator contacts and anticipation of enough space behind the detector to enter the zone wires and remote indicator will create a standard and secure connection. In addition, chrome plating of all metal parts provides complete protection against corrosion.

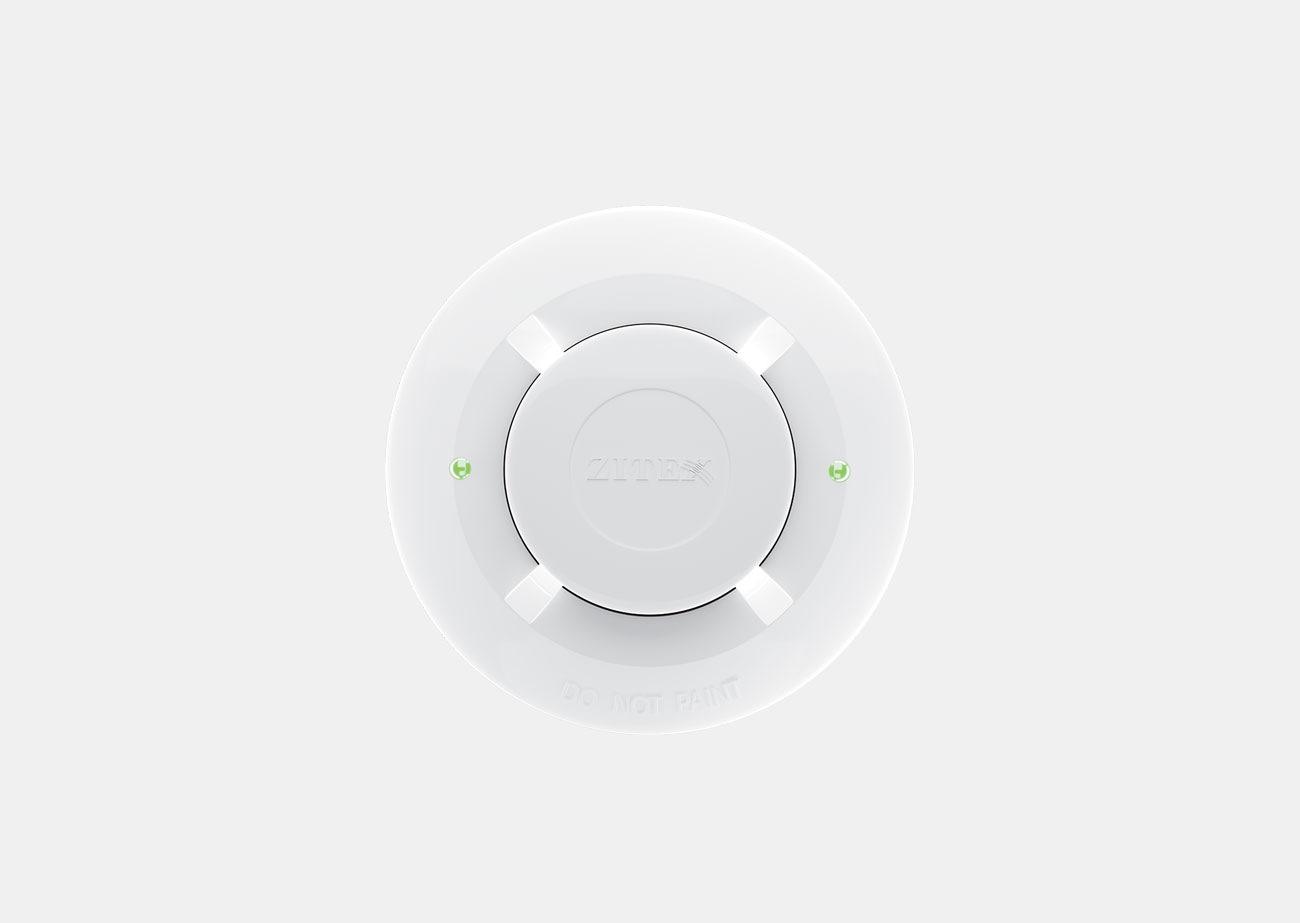

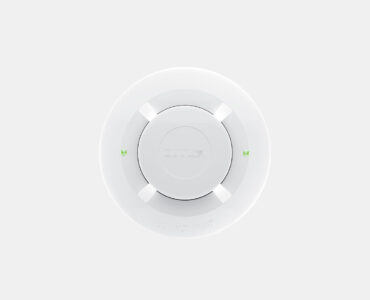

The two LEDs continuously indicate the operating status of the detector (flashing green means normal status and solid red means alarm status). Using false reflectors and specialized processors, protection against false alarms is provided (F.A.P technology). The detector circuit is made of two-layer metallic fiberglass with SMT technology for assembling electronic components, and the protective layer on the circuit prevents the circuit from being affected in corrosive and humid environments.

دتکتور دودی کانونشنال ZI-S 815 زیتکس

The most modern laboratory machines and equipment have been used for production and quality control of the product. Golden guarantee and fast and accessible hardware and software after-sales service bring confidence to the consumer. By using the 16-digit series on the back of the product, the authenticity of the product can be controlled. The principles of design and manufacture of this product are based on the national standards of Iran No. 3708 and 3709 and the international standard EN 54-7.

دتکتور دودی کانونشنال ZI-S 815 زیتکس

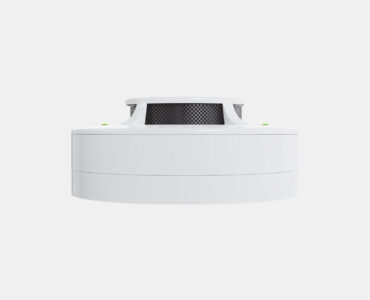

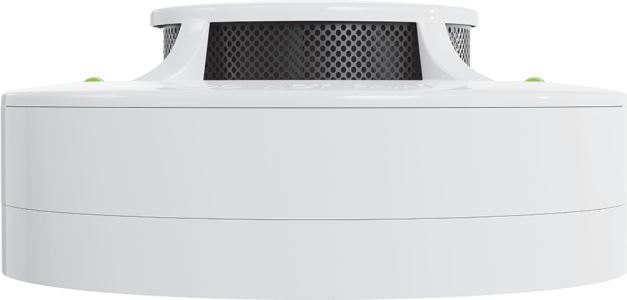

Product Size

دتکتور دودی ZI-S 815 زیتکس

<        4.5 CM        >

دتکتور دودی ZI-S 815 زیتکس

<        9.8 CM        >

Technical Specifications ZI-S 815
Detector class Photoelectric Smoke Detector
Circuit generation technology SMT
Design standard BS EN-54-5 and ISIRI 3708 , 3709
Voltage range 12-32 V D.C.
Current in normal voltage 24V D.C. ≤50 μA
Current in alarm mode at voltage 24V D.C. ≤20 mA
Operating temperature range -15 °C — +80 °C
Functional humidity range (Non-condensing) 5% — 95% RH
Smoke sensitivity (Standard allowable range) 0.15 dB/m (0.05 — 2dB/m)
Initial setup time 5 Sec
Area covered According to EN 5839
Degree of protection IP 40
Ability to see LEDs 360 °
LED function in normal mode Flashing Green
LED function in alarm mode Fixed Red
Wiring without remote 2-wires
Wiring with remote 3-wires
Body Material Heat resistant ABS body
Dimensions 98 x 45 mm
Weight 138 g
