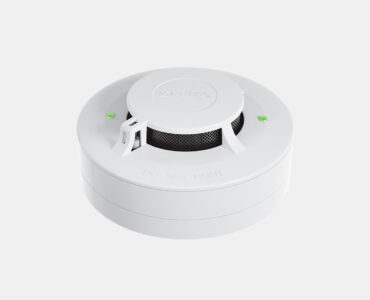

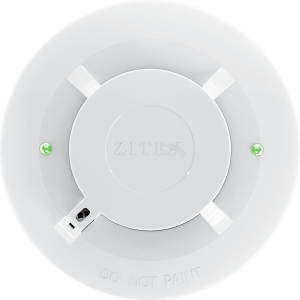

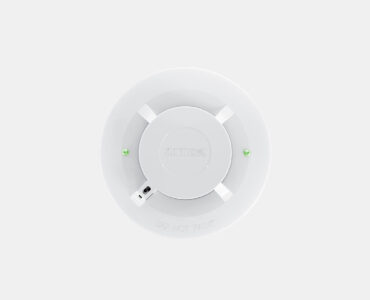

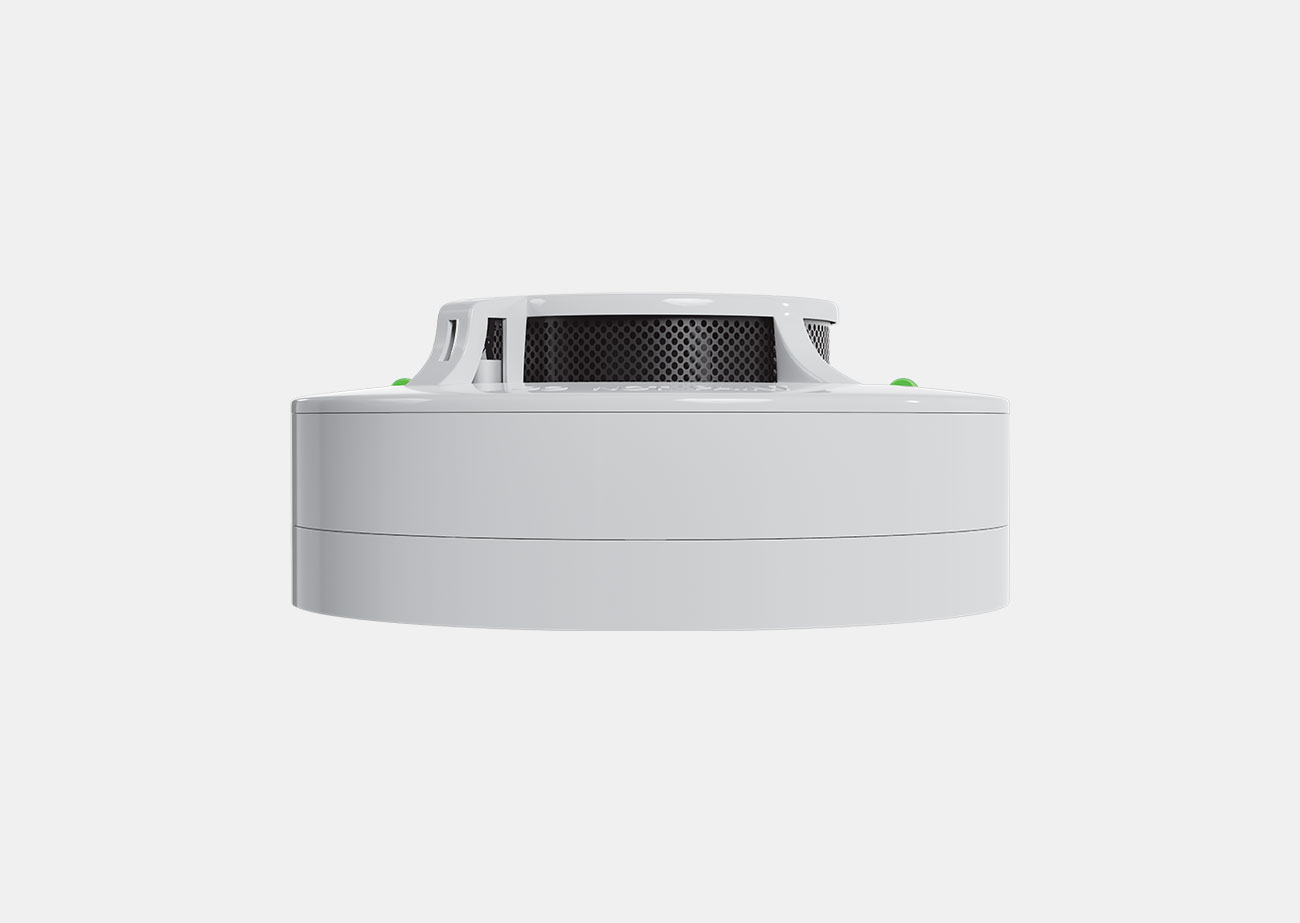

Conventional Heat & Smoke Detector

ZI-HSD 1015

By combining smoke and heat photoelectric sensors in these detectors, it is possible to detect both smoke and heat. The thermal sensor is designed and manufactured in accordance with EN 54-5, in class A1S. Ambient smoke detection is also done by photoelectric signal processing. Using these types of detectors can reduce the costs associated with fire alarm systems.

Double-layer metallized fiberglass circuit with moisture, vapor and corrosion resistant layer

Production of electronic boards using modern equipment based on SMT technology

False Alarm Probability Technology (F.A.P)

Reflector box and processors controlling ambient noise to eliminate false alarms

Detection of ambient temperature rise in steady state (class A1S) in accordance with EN 54-5

SCRIPT FOR SLIDER CAROUSEL

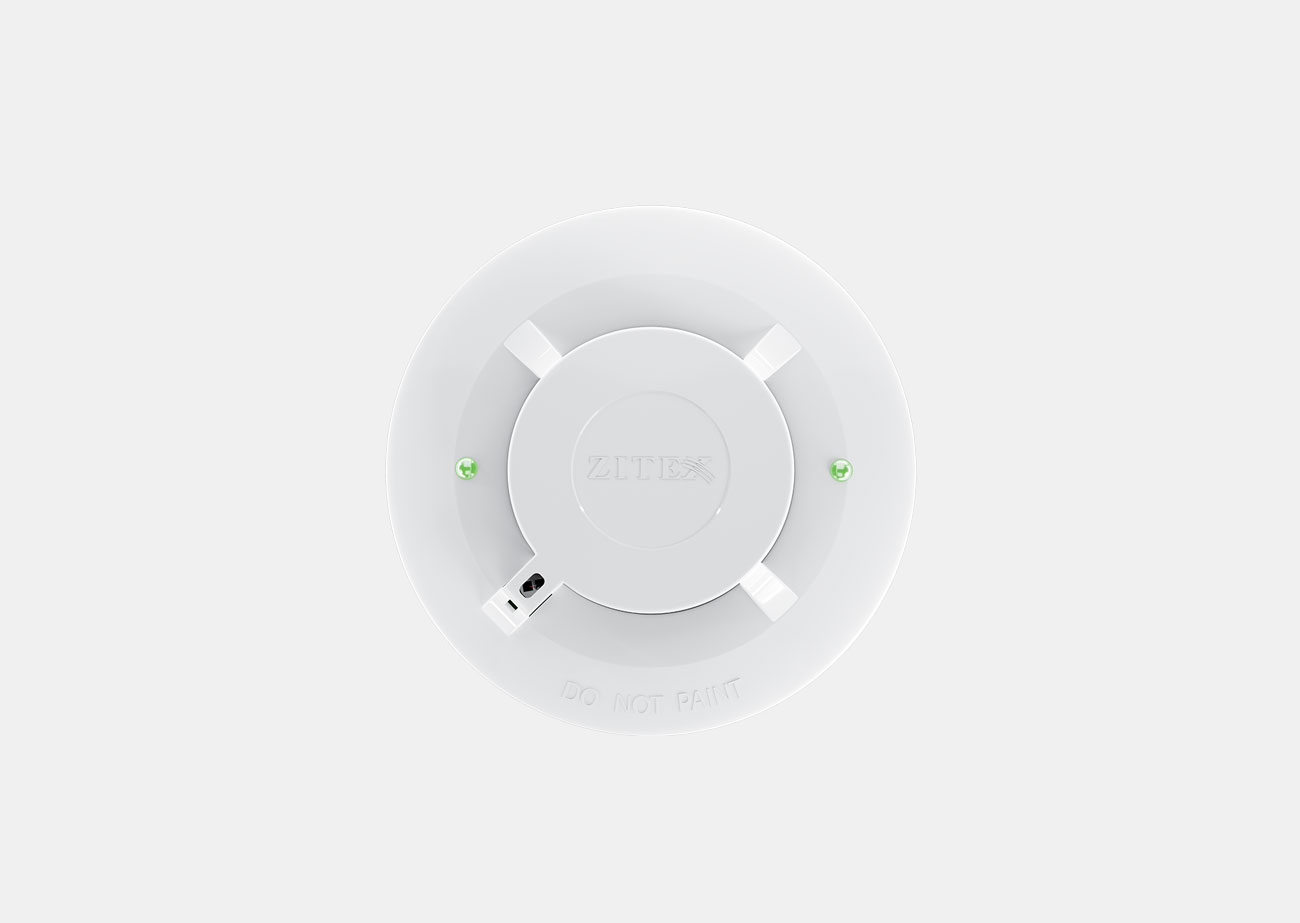

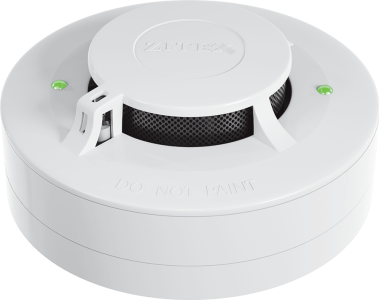

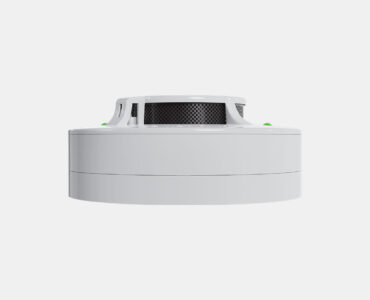

Conventional Heat & Smoke Detector

ZI-HSD 1015

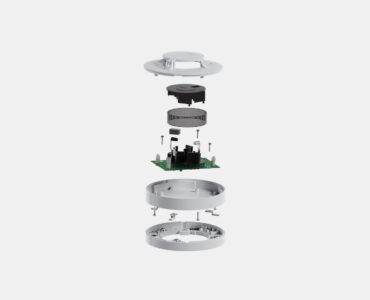

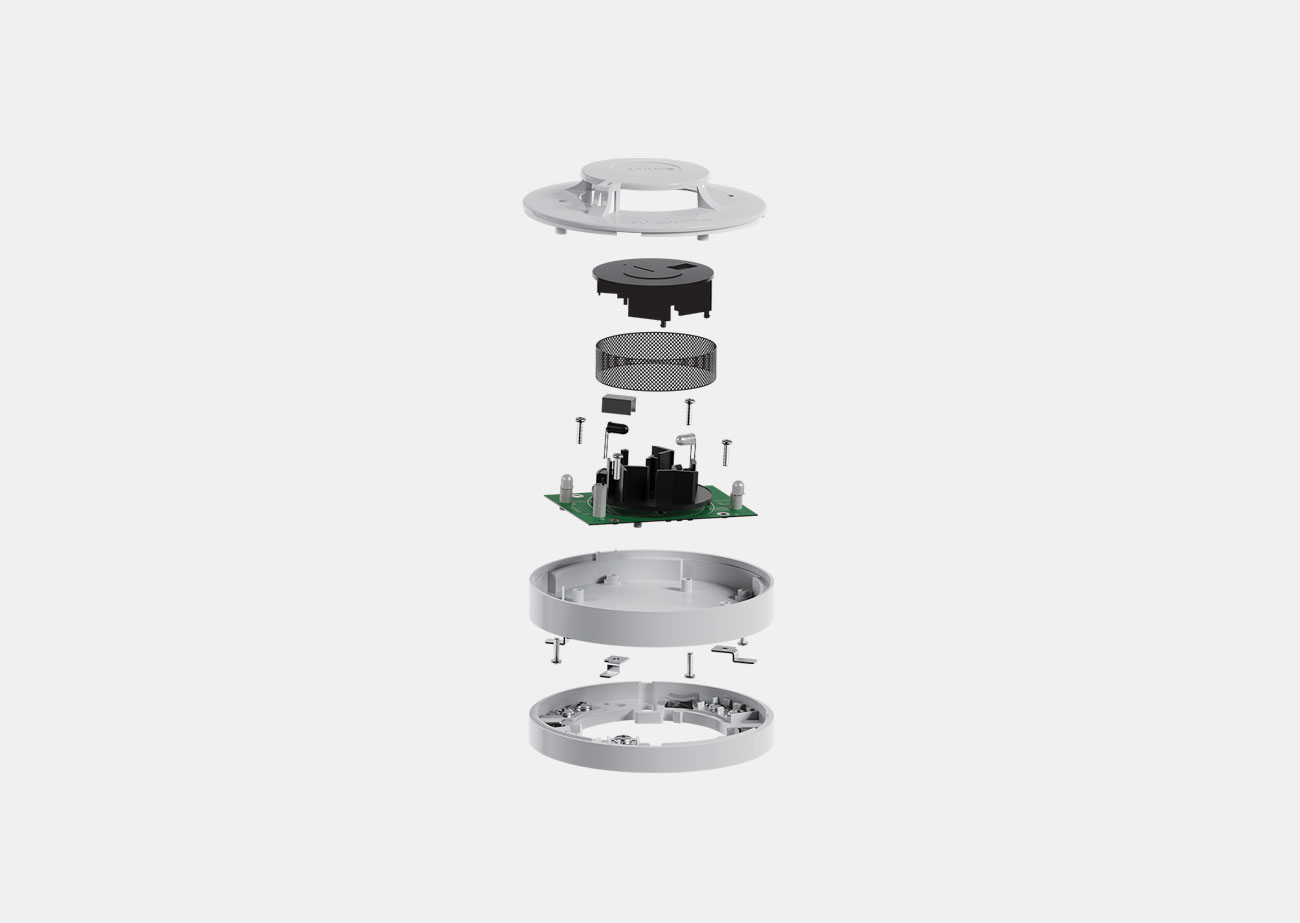

Design and construction of the body using specialized heat-resistant ABS, voltage fluctuations, shock and vibration, specialized lockable chamber and protective filter for dust and insects, two functional indicators to indicate the status of the detector, allocating enough space for zone wires Remote indicator, use of double elevator terminals to make standard connections, protection against reverse polarity and chrome plating of all metal parts to protect against rust are among the features of this detector.

The circuit used is double-layer metallized fiberglass with SMT technology. It is provided on moisture and vapor resistant and corrosive layer circuits. Specialized programming, the use of reflector boxes as well as the use of professional processors have caused no false alarms to occur in these detectors; That is, the acquisition of false alarm removal technology (F.A.P).

Two standards must be considered simultaneously for the design and manufacture of hybrid detectors sensitive to smoke and ambient temperature. The requirements of Iranian national standards No. 3708, 3709 and 3710 as well as all sub-clauses of international standards EN 54-5 and EN 54-7 have been studied by ZITEX engineers and have been carefully implemented on the design and production of this product. The nature of the smoke caused by the ignition of different materials can be slow-burning, fast-burning and white and black. , Will announce a fire.

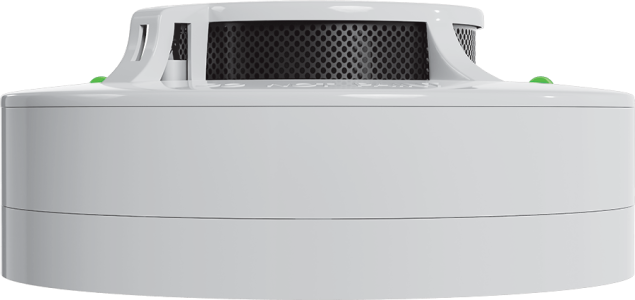

Product Size

< 4.5 CM >

< 9.8 CM >

Technical Specifications	ZI-HSD 1015
Circuit generation technology	SMT
Design standard	EN 54-5 , EN 54-7 , and ISIRI 3708 , 3709 , 3710
Voltage range	12-32 V D.C.
Current in normal voltage 24V D.C.	≤50 μA
Current in alarm mode at voltage 24V D.C.	≤20 mA
Operating temperature range	-15 °C — +80 °C
Functional humidity range	(Non-condensing) 5% — 95% RH
Alarm temperature	60°C ± 3°C
Detector class according to standard EN 54-5	A1S
Smoke sensitivity (Standard allowable range)	0.15 dB/m (0.05 — 2dB/m)
Initial setup time	5 Sec
Area covered	According to EN 5839
Degree of protection	IP 40
Ability to see LEDs	360 °
LED function in normal mode	Flashing Green
LED function in alarm mode	Fixed Red
Wiring without remote	2-wires
Wiring with remote	3-wires
Body Material	Heat resistant ABS body
Dimensions	98 x 45 mm
Weight	140 g
