Conventional Fix Heat / ROR Detector

ZI-H 715 ROR

In addition to detecting smoke, detecting heat from a fire can also be a way to detect a fire. Heat detectors, depending on their temperature class (according to EN 54-5), can react to a specific constant temperature threshold (suffix S) or to a sudden rise in ambient temperature (suffix R). The type of detector is selected based on the operating temperature of the environment.

Double-layer metallized fiberglass circuit with moisture, vapor and corrosion resistant layer
Production of electronic boards using modern equipment based on SMT technology
False Alarm Probability Technology (F.A.P)
Detection of ambient temperature increase in two modes of constant (class A1S) and incremental (class A2R) in accordance with EN 54-5
SCRIPT FOR SLIDER CAROUSEL

Conventional Fix Heat / ROR Detector

ZI-H 715 ROR

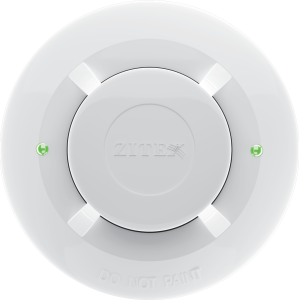

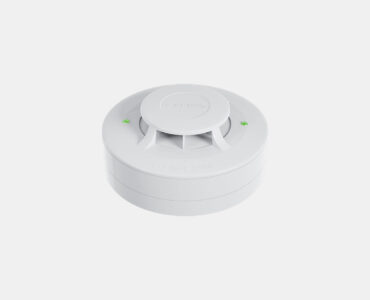

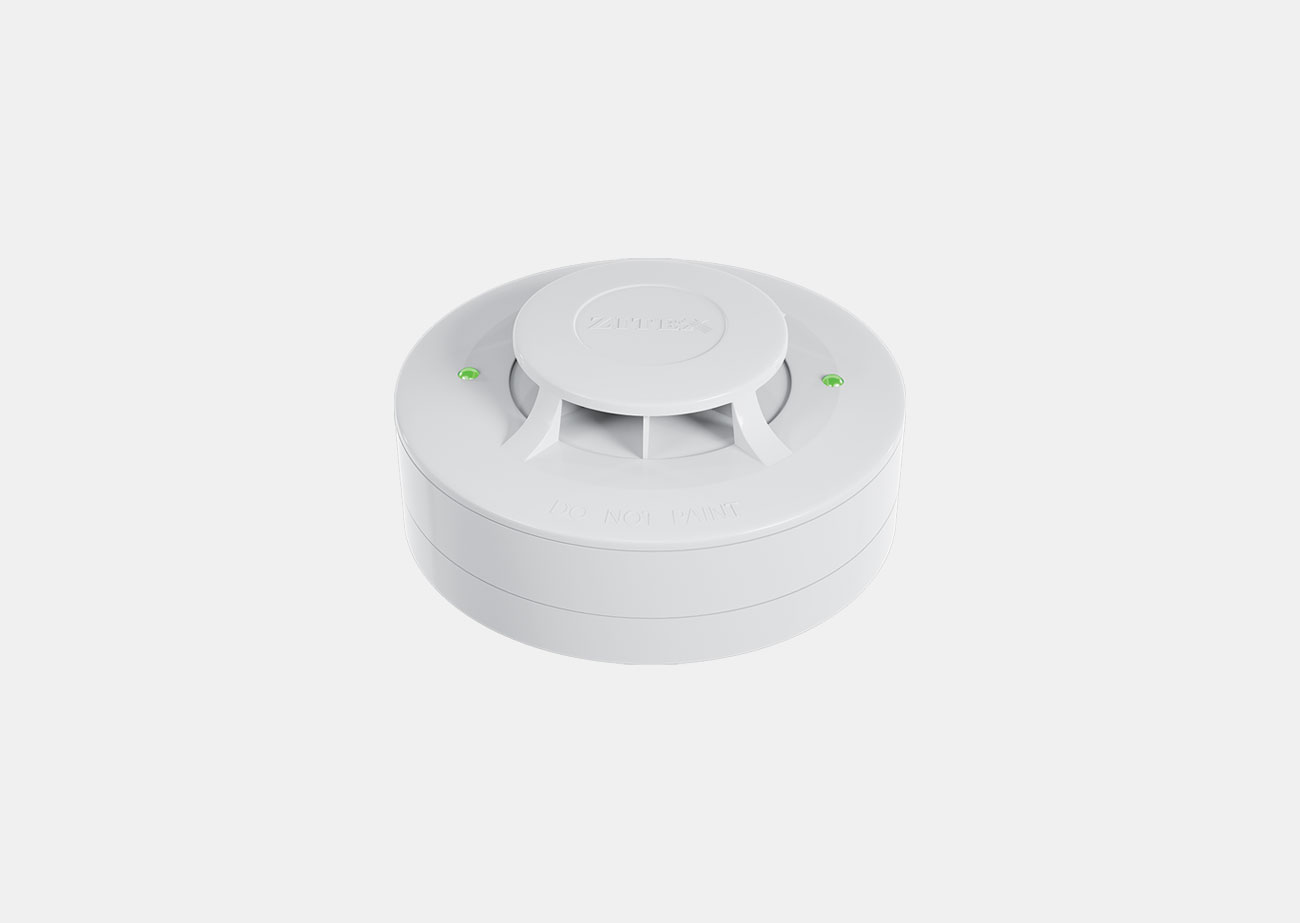

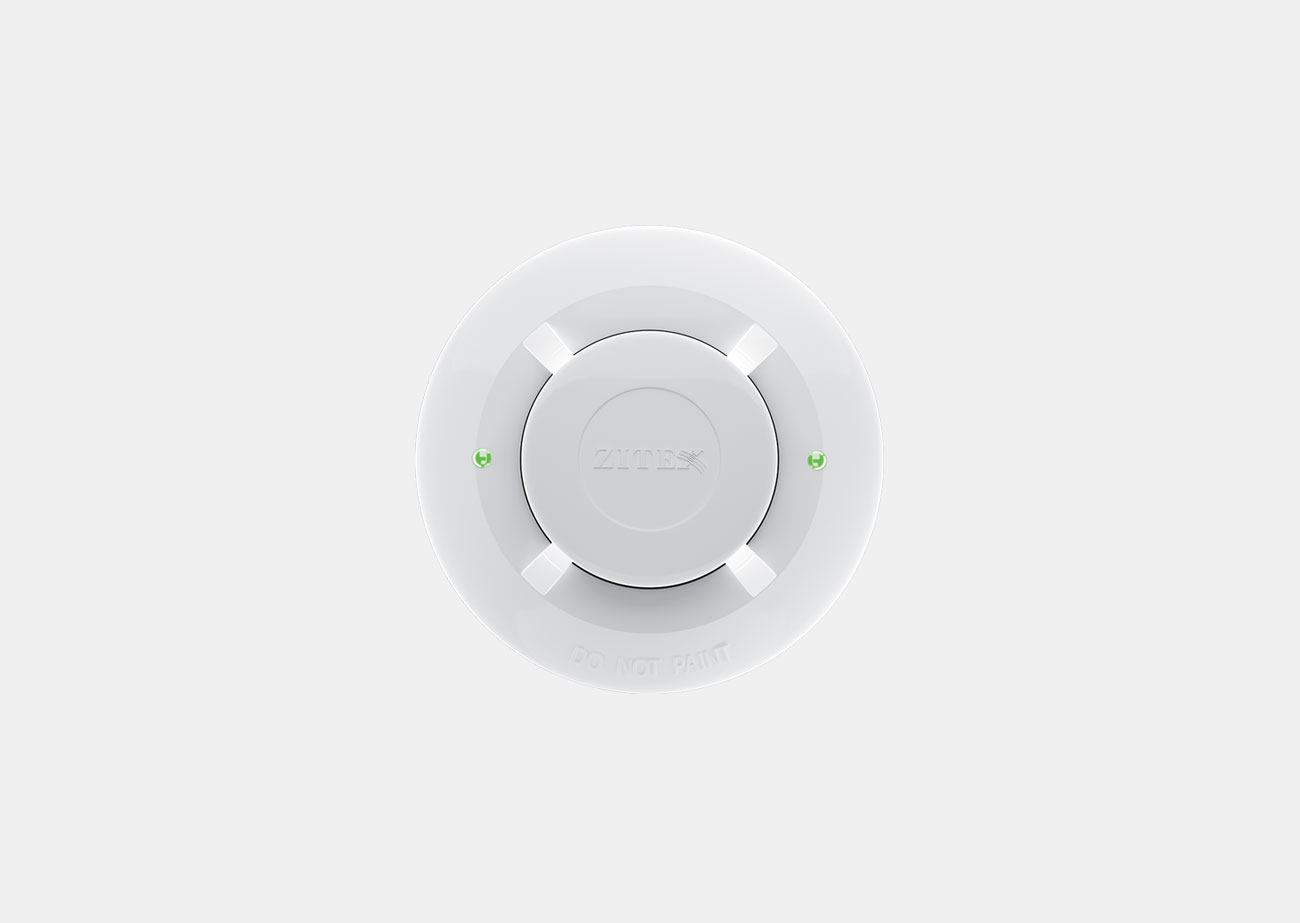

The body of Zitex ZI-H 715 heat detectors is made of heat-resistant ABS plastic. Other features of the detector materials include providing enough space behind the detector to enter the zone wires and remote indicator, as well as the use of double elevator terminals and chrome plating of all metal parts to protect against corrosion. The two LEDs show the detector operation continuously (flashing green: normal / solid red: alarm). The detector circuit is protected against reverse polarity.

دتکتور حرارتی دما ثابت / افزایشی ZI-H 715 زیتکس

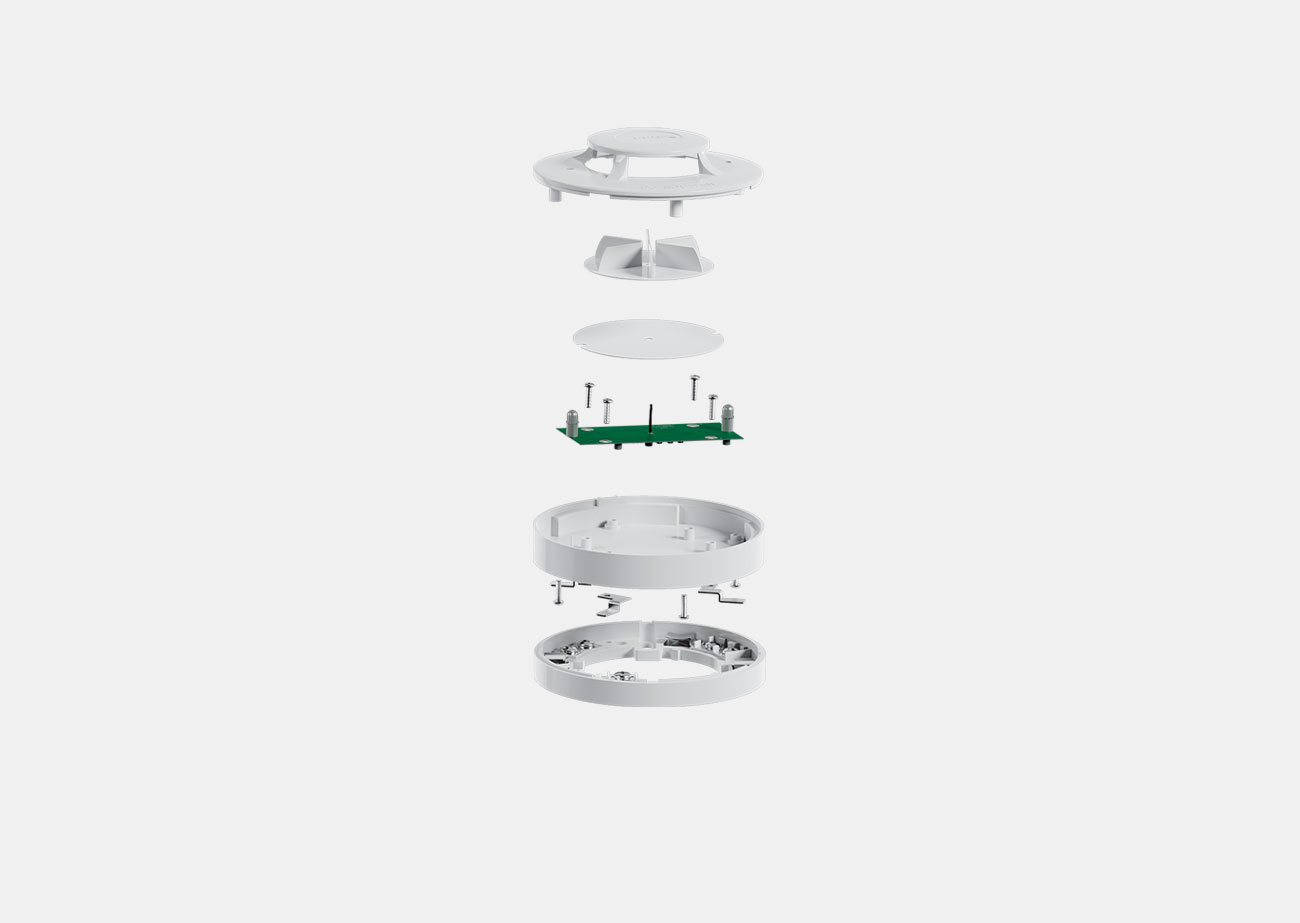

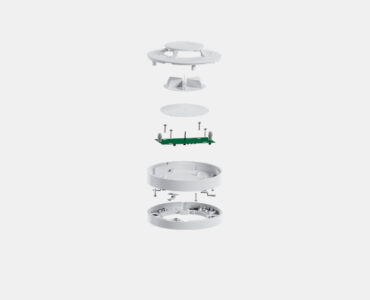

The circuit used in the detector is made of duplex metallized fiberglass and the electronic components are assembled on the circuit using SMT technology. Hardware and software technology for the elimination of false noise and alarms (F.A.P) makes the detector safe against electromagnetic noise and false alarms. It is possible to connect the detector to the remote and both thermal class extensions (S and R) are included in the products.

Similar to all ZITEX products, golden warranty and fast and available hardware and software after-sales service, use of the most modern equipment and testing and production machines, and 16-digit serial tracking code of the product on the back of the product are also included in this model. Has been. The basis for designing and manufacturing this product is Iranian National Standard No. 3710 and International Standard EN 54-5.

دتکتور حرارتی دما ثابت / افزایشی ZI-H 715 زیتکس

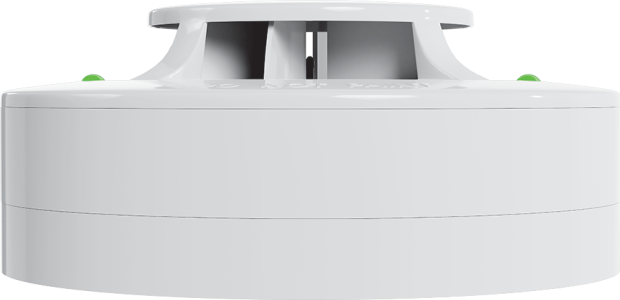

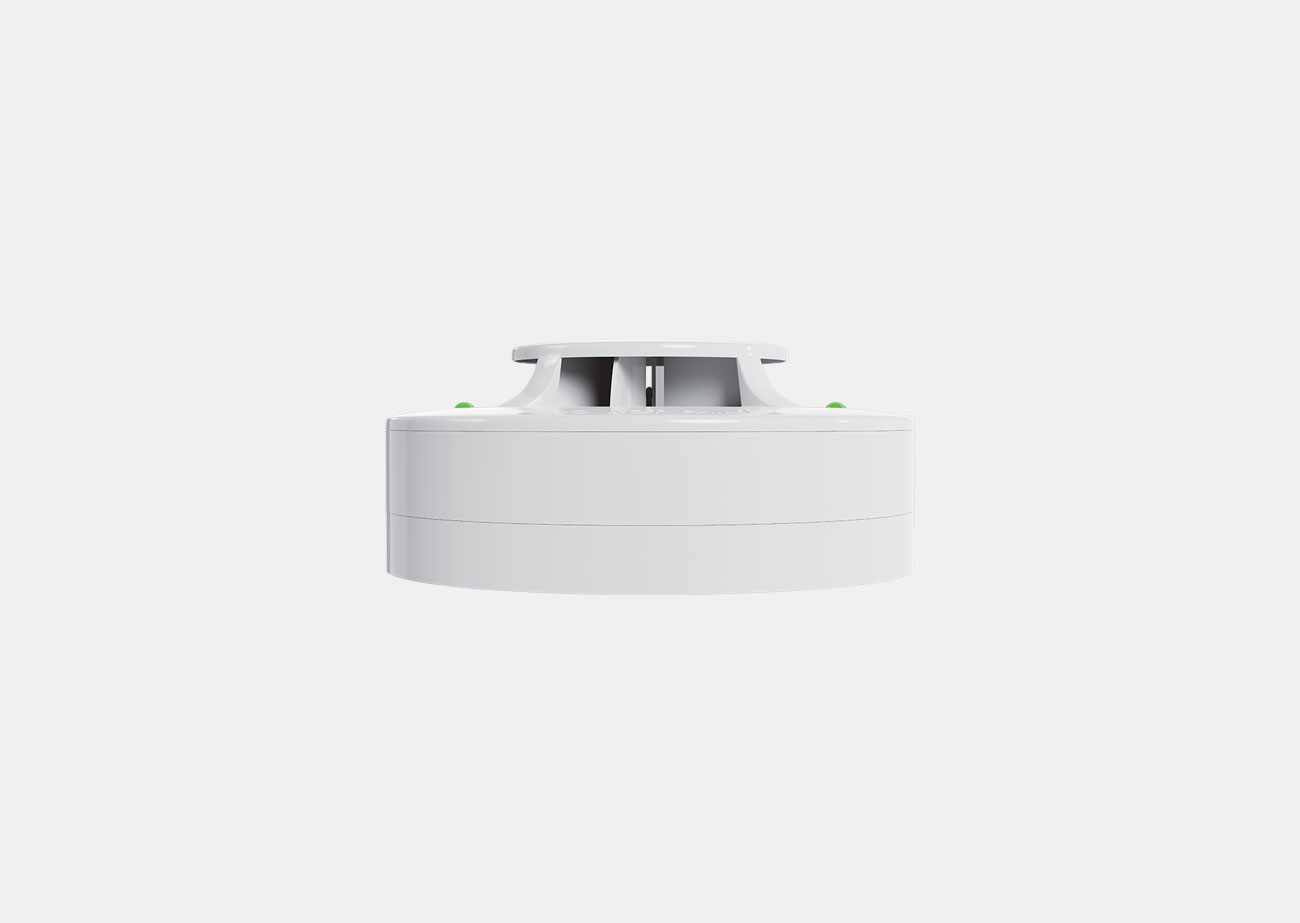

Product Size

دتکتور حرارتی دما ثابت / افزایشی ZI-H 715 زیتکس

<        4.5 CM        >

دتکتور حرارتی دما ثابت / افزایشی ZI-H 715 زیتکس

<        9.8 CM        >

Technical Specifications ZI-H 715
Detector class according to standard EN 54-5 A2R           A1S
Circuit generation technology SMT
Design standard EN-54-5 and ISIRI 3710
Voltage range 12-32 V D.C.
Current in normal voltage 24V D.C. ≤50 μA
Current in alarm mode at voltage 24V D.C. ≤20 mA
Operating temperature range -15 °C — +80 °C
Functional humidity range (Non-condensing) 0% — 95% RH
Alarm temperature 60°C ± 3°C
RoR performance 8–15°C/min
Initial setup time 5 Sec
Area covered According to EN 5839
Degree of protection IP 40
Ability to see LEDs 360 °
LED function in normal mode Flashing Green
LED function in alarm mode Fixed Red
Wiring without remote 2-wires
Wiring with remote 3-wires
Body Material Heat resistant ABS body
Dimensions 98 x 45 mm
Weight 124 g
