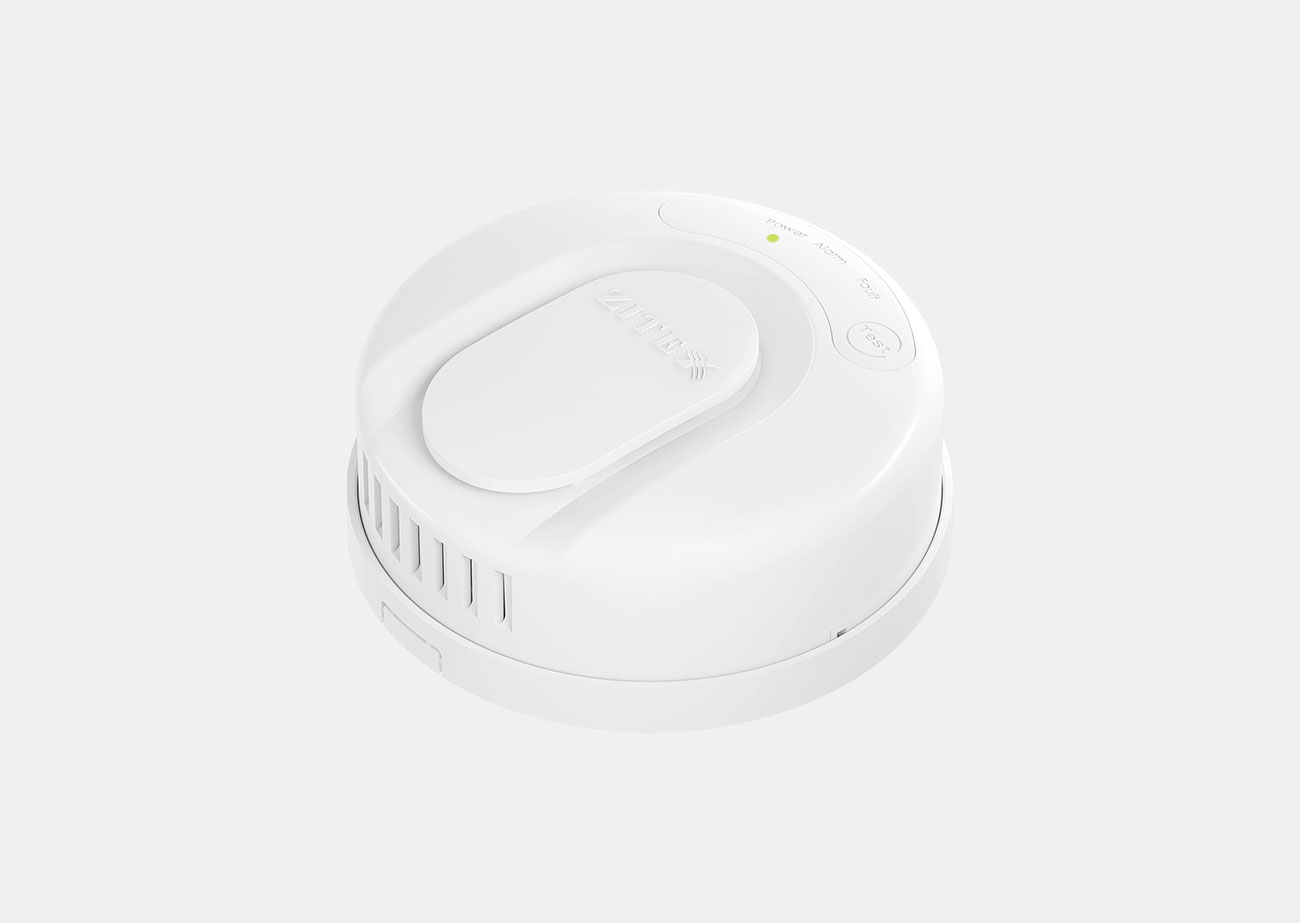

Conventional Carbon Monoxide

ZI-CO 930

Gas leaks in the home or other environments can have catastrophic consequences. The flammability of city gas causes leakage, posing serious risks to life and property. The gas detector is designed to detect gas leaks in the environment. If the amount of gas in the air exceeds the defined limit, the gas leak warning signal either sends a warning signal to the control panel or operates independently.

Professional design and manufacturing (ABS)

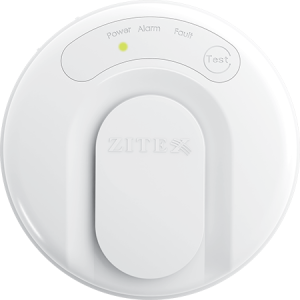

Three-modes indicator LEDs

Push to Test

Low battery signal

False Alarm Protection Technology (F.A.P)

SCRIPT FOR SLIDER CAROUSEL

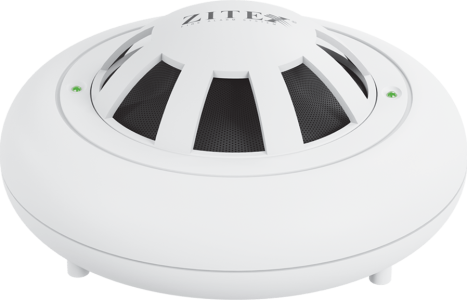

Conventional Gas Detector ZI-G 915

The body of ZITEX gas detector is made of heat-resistant ABS and it is designed in such a way that it has a good resistance to impact and vibration. Double elevator contacts are provided to achieve standard and standard wiring. Electroplating of all metal parts increases the life of these parts and prevents them from corrosion in adverse environments.

The gas detector has independent operation (without central device) and in network mode (with central device). When the detector is used independently, the ability to reset automatically after the alarm goes off is provided for it. The detector circuit is made of duplex metallized fiberglass and SMT technology is used to assemble electronic components on the circuit. The protective layer on the circuit also prevents corrosive and wet environments from having a negative effect on the detector performance.

Production and quality control of the product is done using the most modern machines and laboratory equipment. Golden guarantee and fast and available after-sales service are other advantages of using ZITEX products. Adherence to standard requirements guarantees quality and provides reassurance to the consumer.

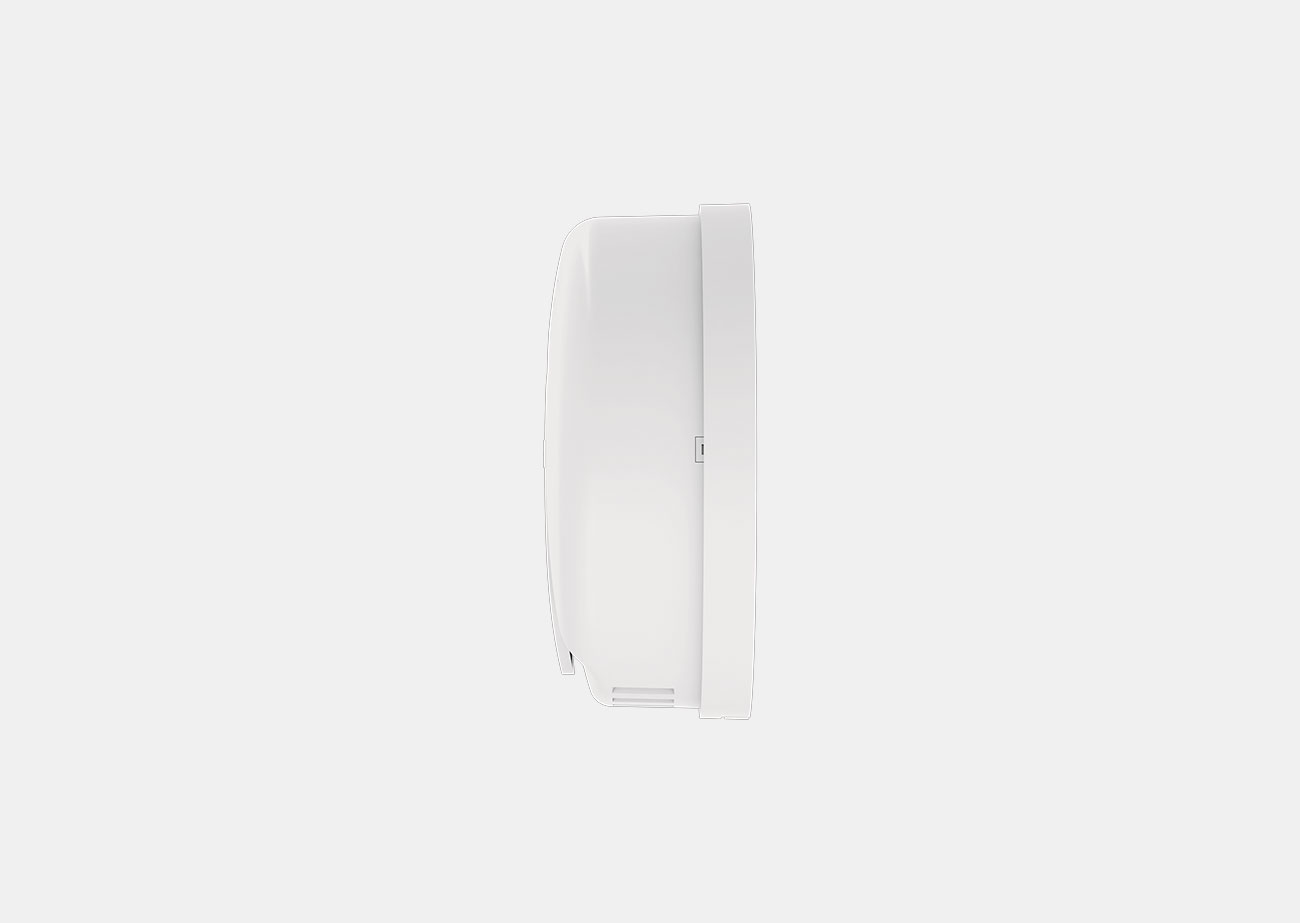

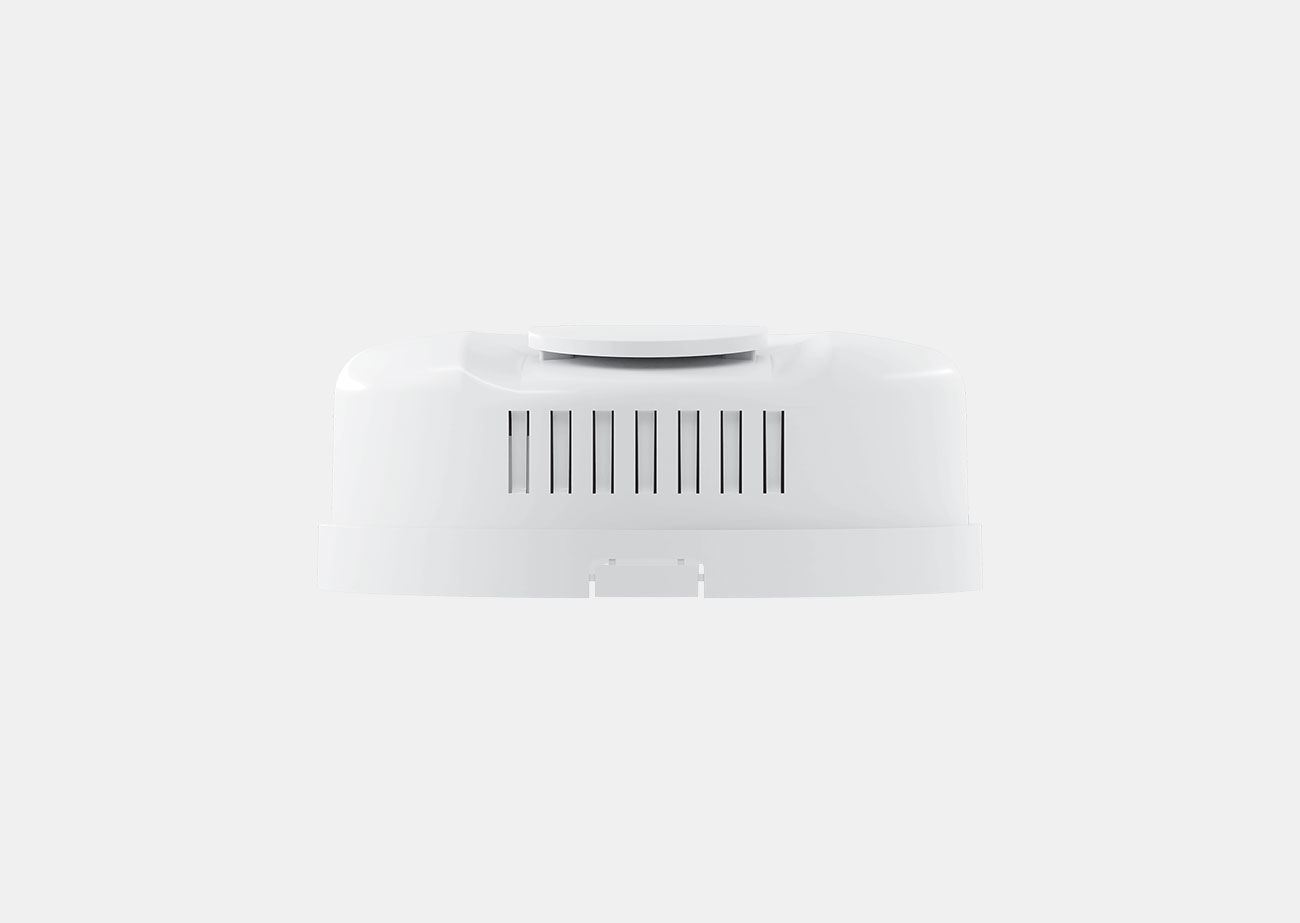

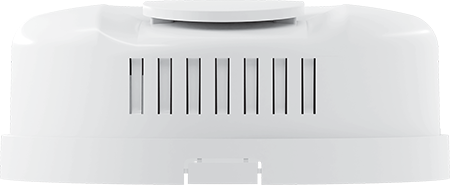

Product Size

< 4.6 CM >

< 11.7 CM >

Technical Specifications	ZI-CO 930
Technology of the Circuits	SMT
Induces Gases	CO
Operating Voltage	9VDC
Power consumption	＜1W
Buzzer Sound level	≥85db/1m
Alarm condition	30ppm : Alarm after 120 minutes 50ppm：Alarm at 60-90 minutes 100ppm：Alarm at 10-40 minutes 300ppm: Alarm within 3 minutes
Operating temperature	-20 °C — +60 °C
Operating Humidity	(Non-condensing) 5% — 95% RH
Start-up Time	60 ± 5 Sec
LEDs Visibility	3 LEDs
LED at Start-up Mode	Flashing 3 LEDs
LED at Normal Mode	Fixed Green
LED at Alarm Condition	Fixed Red
LED at Internal Fault	Fixed Yellow
Material	Heat resistant ABS body
Dimensions	117 x 117 x 46 mm
Weight	170 g
