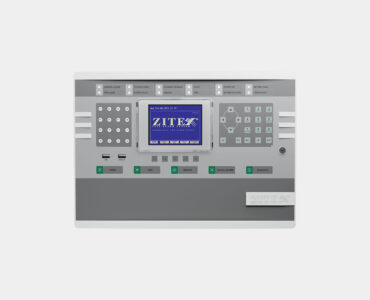

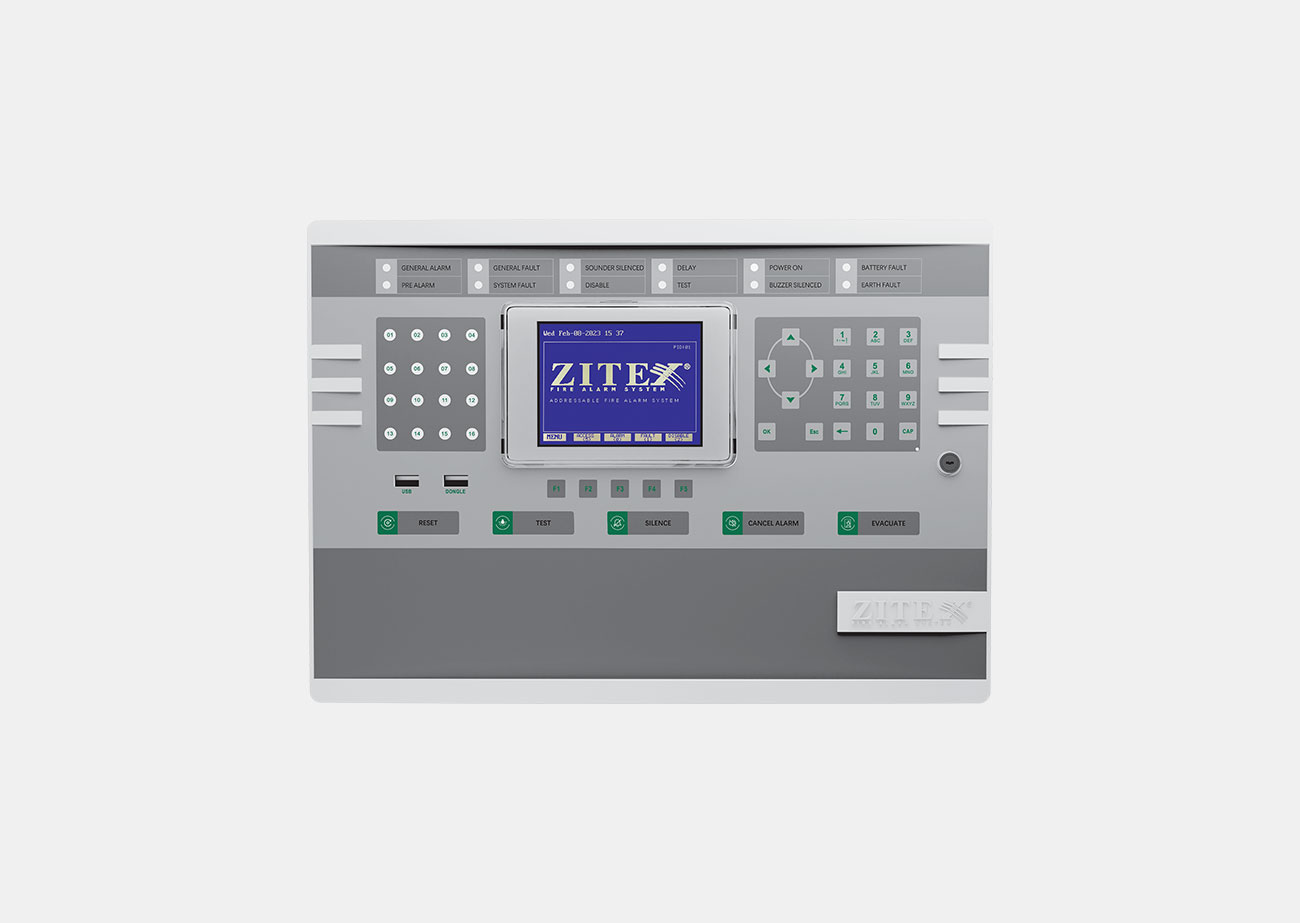

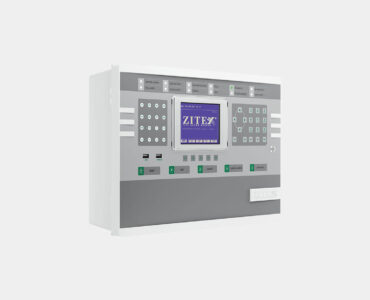

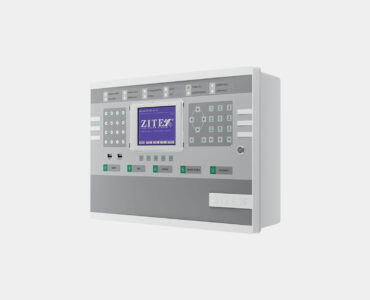

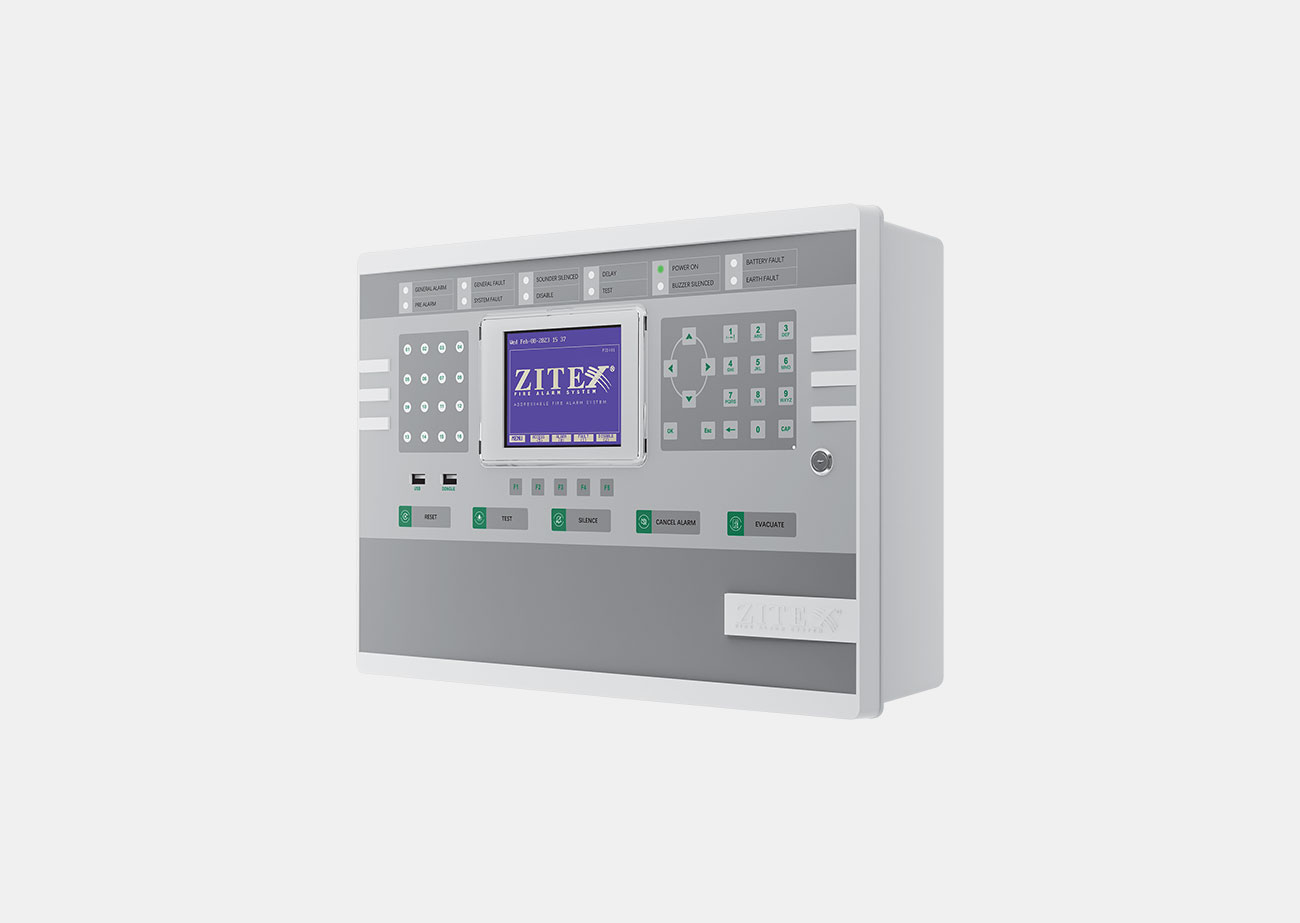

Addressable Control Panel

ZX-P 1000 PRO AD

The management of the fire alarm system is in charge of the control panel. The fire alarm center receives signals from detectors and other equipment and then commands alarm systems. Zitex addressable fire alarm control panel is designed, manufactured and tested in accordance with the requirements of EN 54-2, 4. This panel is available in single loop and double loop versions.

SCRIPT FOR SLIDER CAROUSEL

Addressable Control Panel

ZX-P 1000 PRO AD

EN 54 & ISIRI Certified
Approved by Tehran and metropolitan fire departments
Built- in isolator for all devices
Soft addressing technology
Exclusive ZITEX protocol
Software protection (Passwords)
Possibility of adding a hardware lock (dongle) in addition to the password for combined protection at access level 4
(Networking technology up to 32 nodes) RS485 protocol without additional cards
Network auto addressing and auto registering
(Network connection troubleshooter technology) Scanning and identifying of break points within network
(Loop connection troubleshooter technology) Scanning and identifying of break points within loop
(32 km distance coverage ) With 32 networked panels or repeaters (1 km distance between each node)
Command management within network
Siren command management within network
Advanced cause & effect scenarios (16 inputs 2 groups of 8 inputs) and 4 outputs
(Gateway technology) LAN output for controlling and monitoring of devices and panels through graphical software
F.A.P (False Alarm Protection) Technology

(Easy and high-speed addressing) Full capacity addressing in less than 30 minutes
Full software support
Two-sided voltage supply
(High storage capacity) Storing 10,000 events in full detail, with no time limit
(Log history) Print event logs via printer or copy using USB as a .txt file
(Black box technology) Storing last 500 events in a non-volatile memory only accessible for factory
Current leak test
(Interactive management technology) Two- way communication between panel and devices for real time monitoring and programming
(Easy software update technology) Update all boards software via U-Disk interface

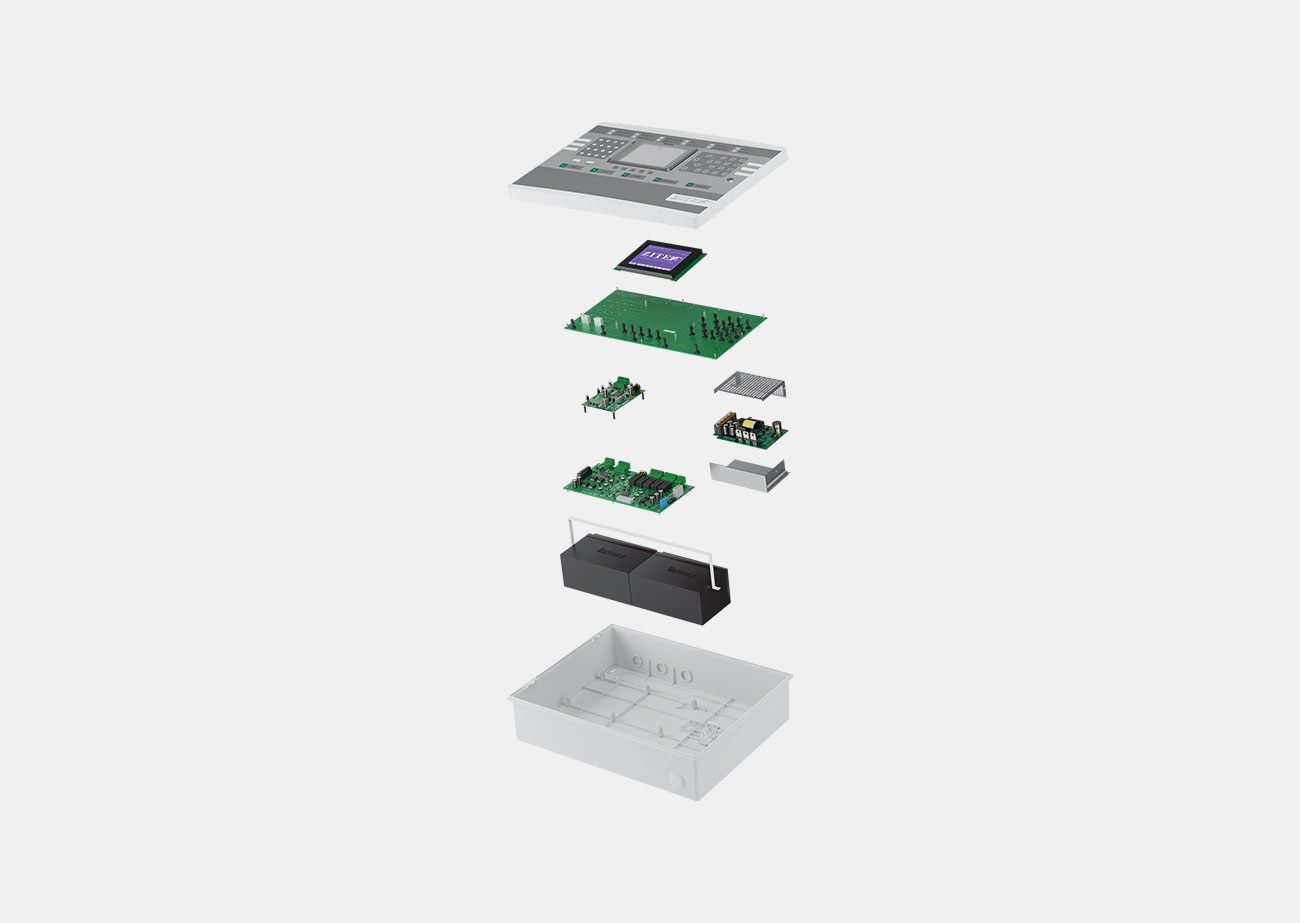

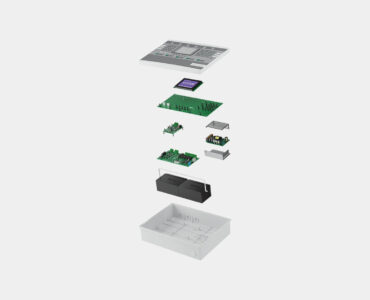

Modular design of boards: upgradeable up to 4 loops in ZX-P 1000 AD model and up to 2 loops in ZX-P 1000 PRO AD model
Portable printer
Zoning technology (96 zones in ZX-P 1000 AD model and 16 zones in ZX-P 1000 PRO AD model)
(High- capacity loop up to 250 devices)* Max 512 detector or manual call point according to EN 54-2
Loop distance coverage up to 2000 m
Physical protection (protective door) (ZX-P 1000 AD)
Maintenance reminder technology
Location identification capability

(Safe backup technology) Secure storage of configuration parameters and protection against erasing even after loop card change
(Self-health report capability) Online status report for all boards
(Fire scenario management) Activate and monitor various inputs and outputs using different modules and built- in relays
Short- circuit auto protection for boards
(Electromagnetic compatibility) Protection against the effects of electromagnetic, electric and electronic shocks in all boards
Grouping and zoning technology
Panel outputs programming
Modules programming
Delay time programming
Selectable Day/ Night mode to change sensitivity levels or classes of detectors
(Graphic table) Display devices based on type and status
(Current consumption table) View online and alarm current of all devices and entire system
Electronic disabling and enabling of devices, loops and panels
(Polling lost auto test technology) Data transferring troubleshooter engineering test
Rename capability for devices, zones and panels
Multiple modes for zone outputs (normal, 2 devices and double)
Change address of devices

Multimode addressing
Add new device to loop and assign new address by self-addressing
(Extra conventional sirens lines) Max 10 pcs of sirens for each line
Multimode siren programming (common and zonal)
Double address scanner technology
(Easy setup) No need for a license or connection to the computer
Configuration of system through panel or configuration software
Professional engineered design, standard materials
Flush and surface mount
Easy installation with wiring glands and corridors
Specialized switching power supply
Plug socket terminals and sufficient spacing for easy setup
Double-sided fiberglass boards with protective layer
SMT technology
Professional programming
LCD for full display of events (10 rows with 40 characters)

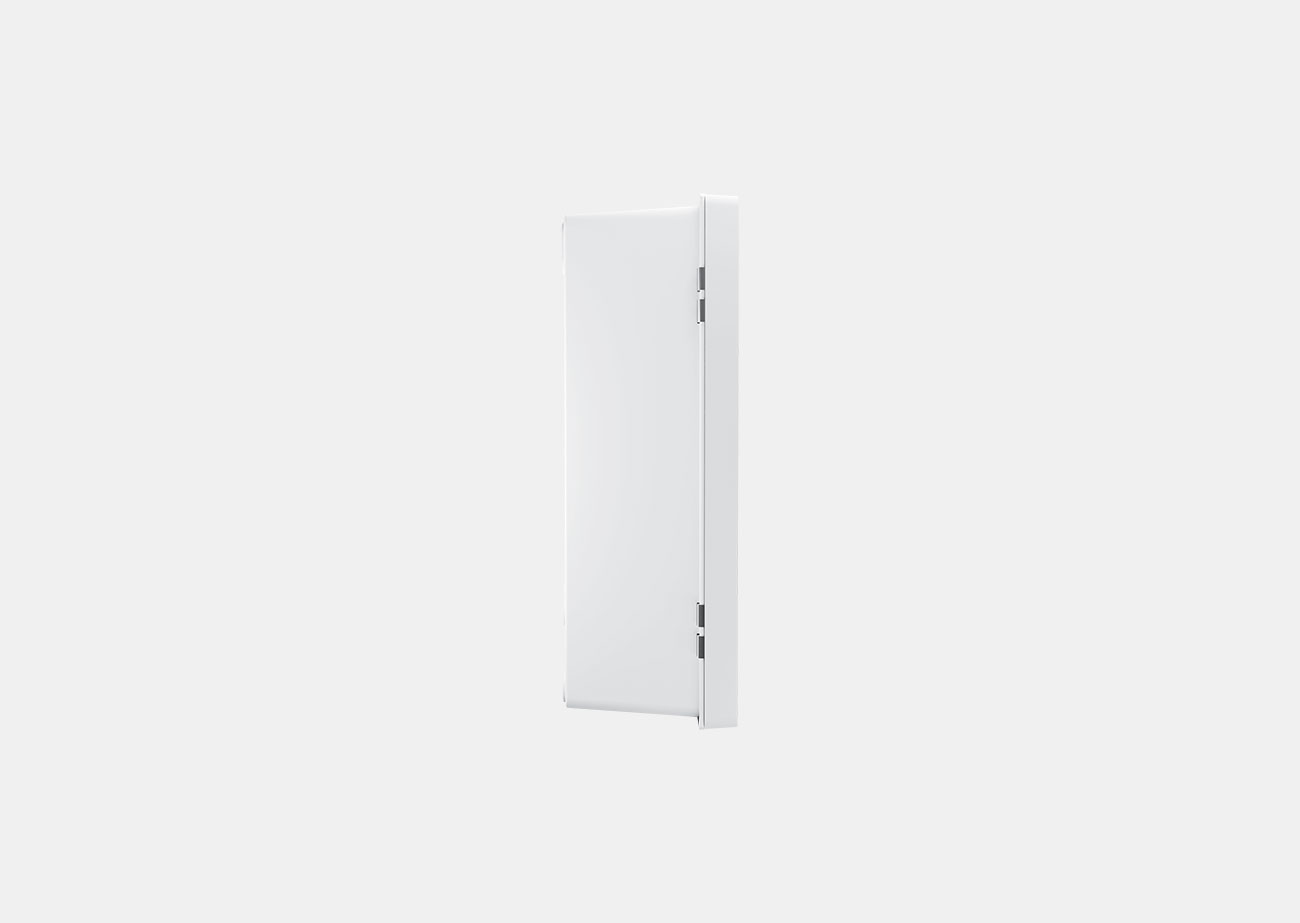

Product Size

< 11.2 CM >

< 41 CM >

Technical Specifications	ZX-P 1000 PRO AD
Supply voltage	230 V A.C (-15%_+10%), 50/60 Hz
System voltage	20-29 V D.C.
Zone indicator (LED)	16 PCS
Output Fault	1 relay (30 V D.C) 2 A
Output Fire	1 relay (30 V D.C) 2 A
Output Alarm	2 lines, each line: 24 V
Battery required	2 x 12 V, 7.2 Ah
Degree of protection	IP 30
Functional temperature	-10 °C — +50 °C
Functional humidity	(Non-condensing) 5% — 95% RH
Printer	Optional
Dimensions	410 x 290 x 112 mm
Number of loops	1 – 2
Loop capacity (number of parts)	1 x 250 2 x 250
Standard requirement	EN 54-2 Installation of more than 512 detectors or callpoints in a non-standard panel
Weight without battery	2.2 Kg
