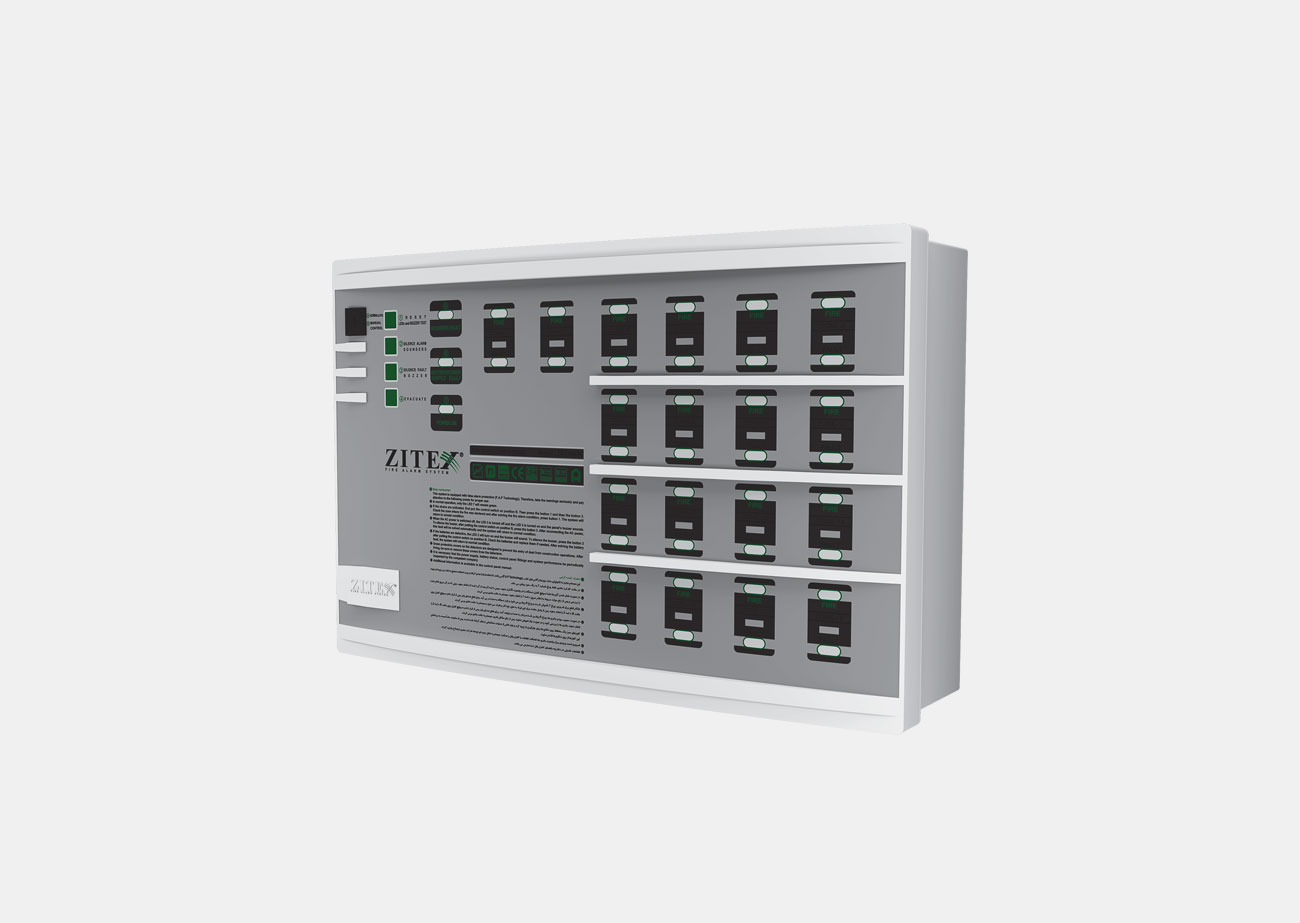

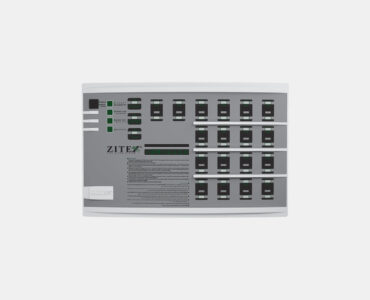

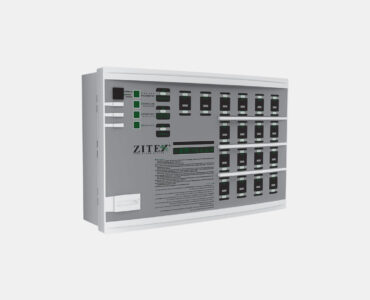

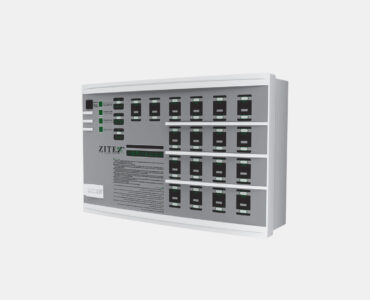

Conventional Control Panel

ZX-1800 N

ZITEX ZX-1800 N fire alarm control panel has the ability to cover 2 to 18 zones by adding zone cards. The design and construction of the body is done using specialized ABS and the body of this panel is resistant to heat, shock and vibration. The requirements of Iranian National Standard No. 3707 and International Standard EN 54-2.4 have been fully complied with. This panel has the ability to install surface and built-in depending on the needs of the project. Standard glands and corridors have been used for easy and principled installation.

Specialized power supply to reduce consumption and prevent damage due to voltage fluctuations
Double-sided metallized fiberglass circuit with moisture, vapor and corrosion resistant layer
False Alarm Protection Technology (F.A.P)
Separate output for each zone
Ability to network without adding extra network card
Professional panel suitable for 1 to 18-storey buildings
SCRIPT FOR SLIDER CAROUSEL

Conventional Control Panel

ZX-1800 N

To prevent damage due to voltage fluctuations, the panel is equipped with specialized switching power supply. Ease of operation of the system is made possible by anticipating socket terminals and allocating sufficient space. The circuits used are of two-layer fiberglass type with SMT technology. It is provided on moisture and vapor and corrosion resistant layer circuits. Specialized programming as well as the use of professional processors have provided 100% protection against false alarms and errors; That means achieving False Alarm Protection (F.A.P) technology.

کنترل پانل کانونشنال ZX-1800-N زیتکس

Different types of sensors, alarms and ancillary protection equipment can be managed using the Zitex fire alarm control panel. A separate output is provided for each zone to activate different outputs. It is possible to easily network the two panels using two wires, and it is possible to control the performance of each panel through the other panel.

Other features of this product include: the ability to isolate zones (makes it possible to take a specific zone out of the circuit if needed), zone engineering test (this test can be done individually) And allows the operator / user to test the devices in the zone), auxiliary relay for setting up peripheral systems (using this relay can be set up positive pressure fan or other ancillary equipment connected to the panel ), The ability to set up an automatic caller, light weight and 100% quality control.

کنترل پانل کانونشنال ZX-1800-N زیتکس

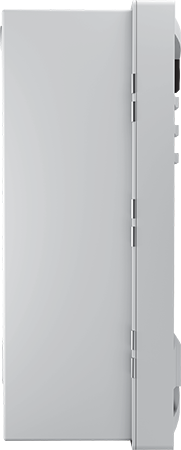

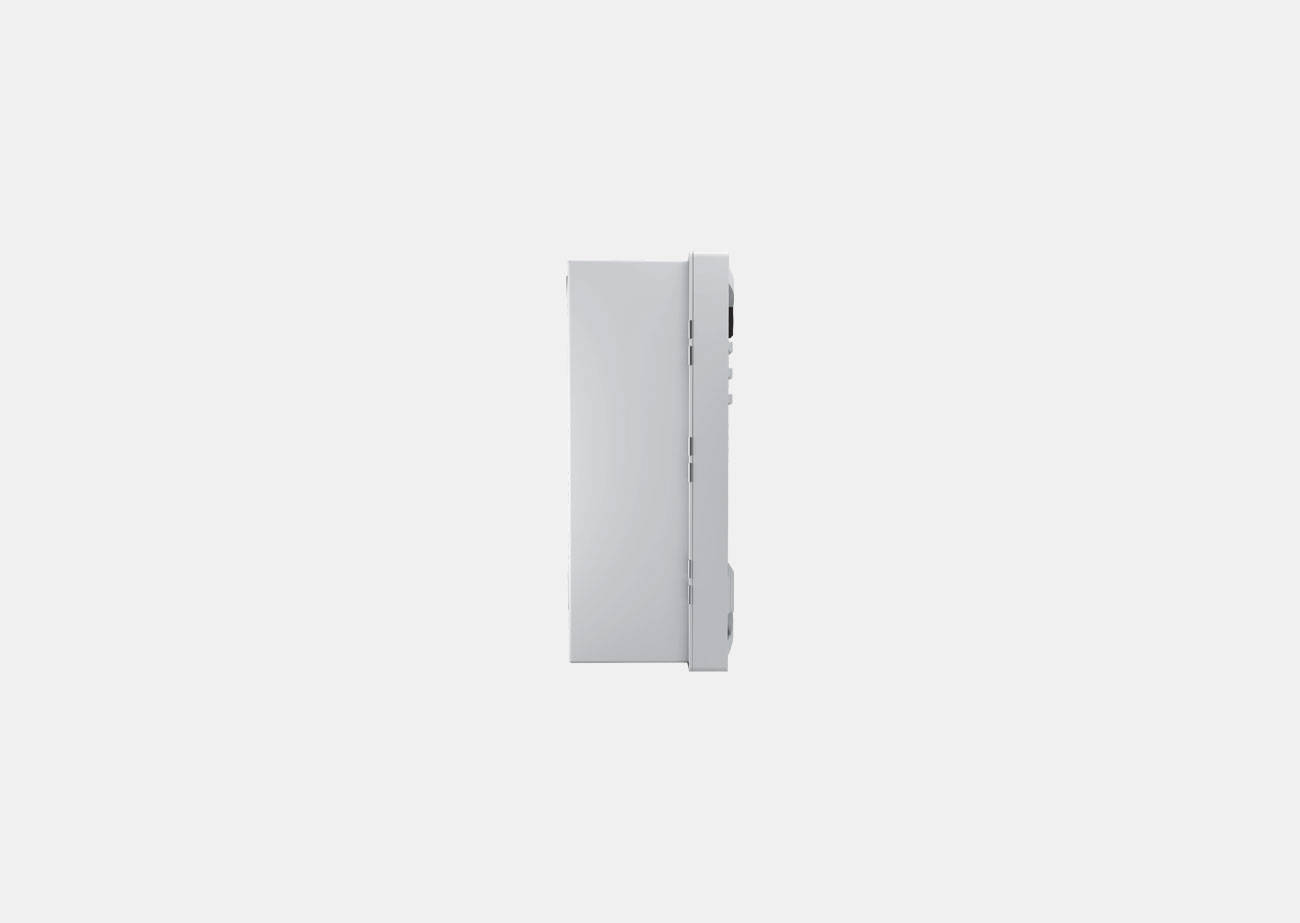

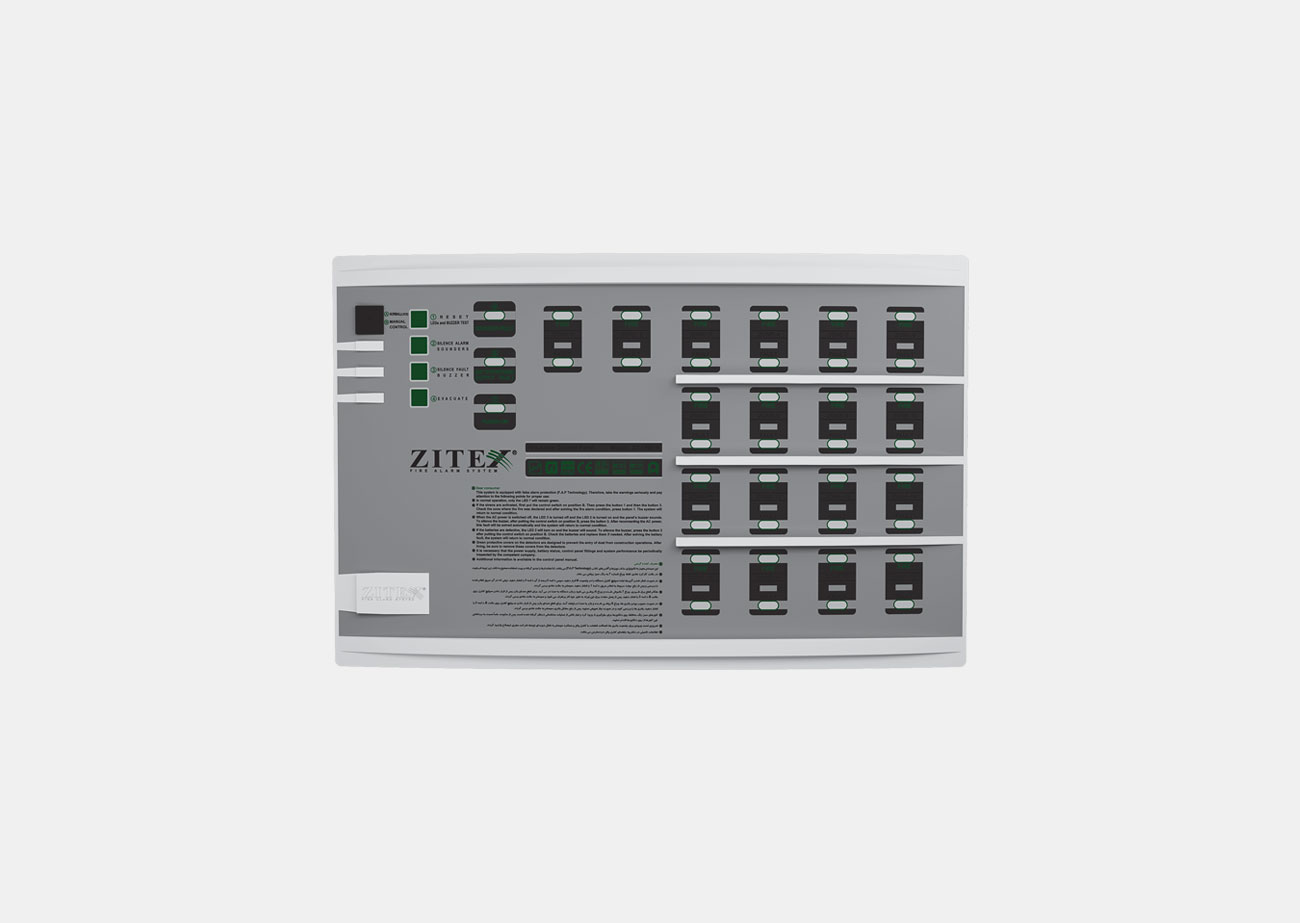

Product Size

کنترل پانل کانونشنال ZX-1800-N زیتکس

<        10.5 CM        >

کنترل پانل کانونشنال ZX-1800-N زیتکس

<        32.5 CM        >

Technical Specifications ZX-1800-N
Design standard EN 54-2, 54-4 and ISIRI 3707
Circuit generation technology SMT
Number of zones per device 2-18 Zones
Ability to increase if networked 36 Zones
input voltage 220 ± 10% V A.C.
Internal power supply 24 V D.C.
Battery required 2×12 V (7.2Ah)
Min and max current consumption 1500, 4000 mA
Output voltage 24 V D.C.
Maximum number of smoke detectors per zone 20 (ZITEX Detectors)
Maximum number of heat detectors in each zone 20 (ZITEX Detectors)
Maximum number of knobs in each zone Unlimited
Maximum number of 30mA sirens per zone 10
The value of the resistance at the end of the line 6800Ω (5% tolerance, 0.5W)
Auxiliary relay contact (do not connect to mains voltage) 1A 30 VDC max Voltage Free
Suitable cable cross section for zone lines and sirens 1.5 mm2
Main terminal input / output siren / auxiliary output 1 A F 20mm
Battery fuse 2 A F 20mm
Body Material Heat resistant ABS body Heat resistant ABS body
Dimensions 325 x 295 x 105 mm
Weight without battery 2.2 kg
