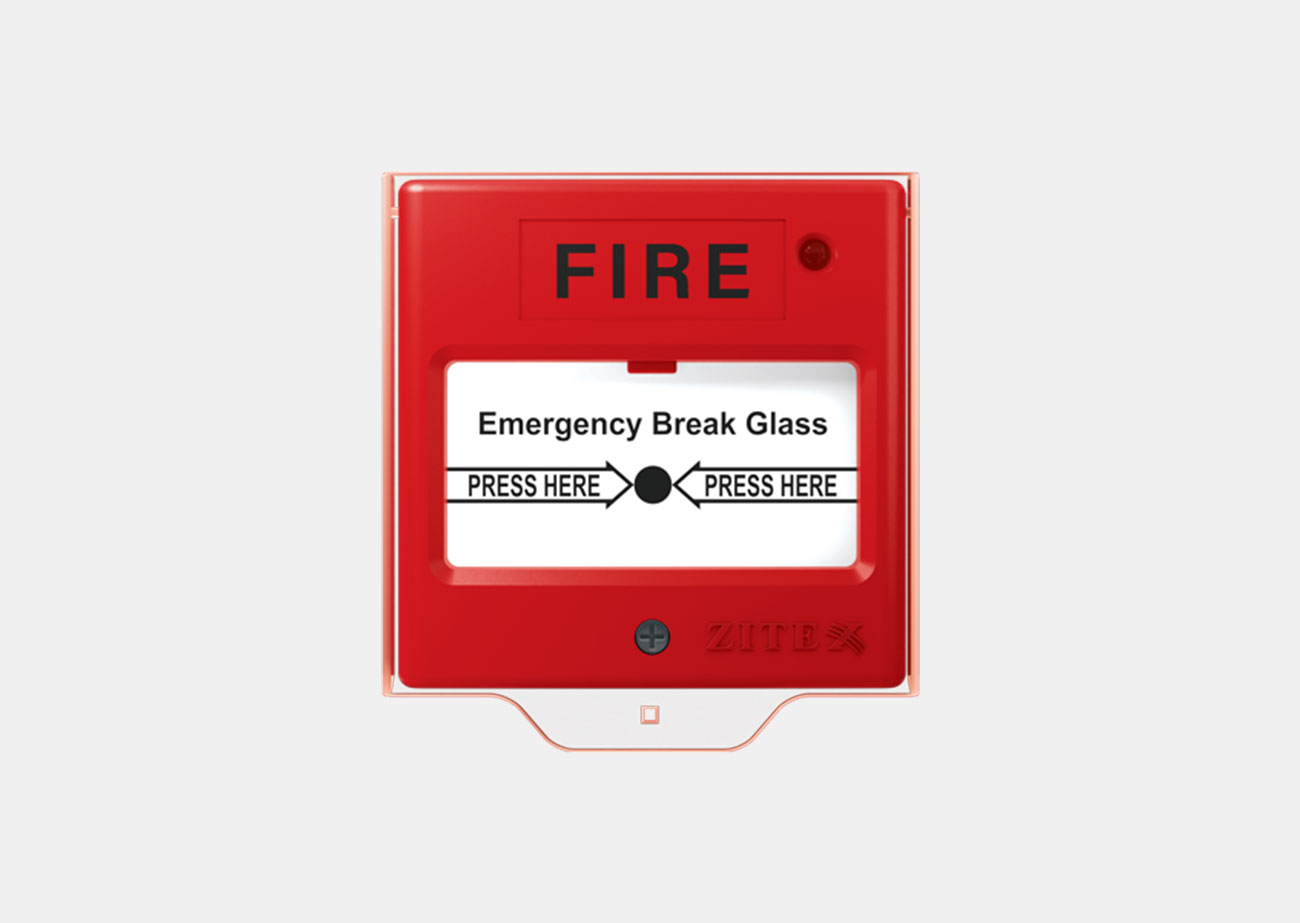

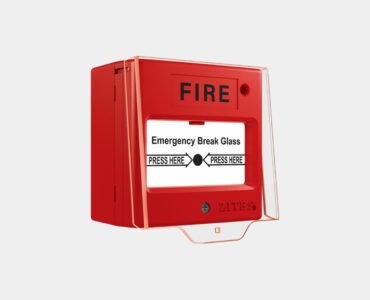

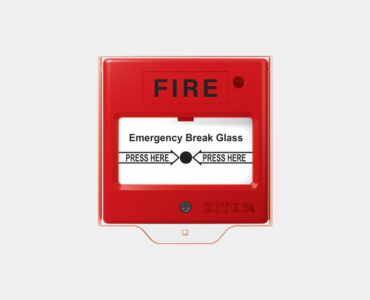

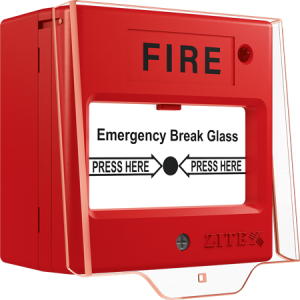

Conventional Manual Call Point

ZI-CP 86

ZITEX ZI-CP 86 fire alarm knob is breakable and can be used in indoor environments due to the protection features of the enclosure. In this model, a protective glass cover is used to protect against sudden and unnecessary shocks. The test key can be used to check knob function and perform periodic tests.

Professional design and manufacturing (ABS)
Glass protective cover (CP 86 model)
Test Key
Reverse polarity protection
Plug socket terminal
Sufficient spacing for proper wiring
False Alarm Protection Technology (F.A.P)
SCRIPT FOR SLIDER CAROUSEL

Conventional Manual Call Point

ZI-CP 86

The body material of the knob is selected from specialized heat-resistant ABS, and therefore the knob is capable of withstanding impact, vibration and voltage fluctuations. Allocating enough space behind the knob ensures that wiring and connections are done correctly, in a principled and standard manner. The double elevator terminal will also help to achieve this goal.

شستی اعلام حریق کانونشنال ZI-CP 86 زیتکس

The knob steering system is of the microswitch type. Chrome plating has been applied to the metal parts to protect them from rust. Reverse polarity protection also ensures that incorrect wiring does not damage the knob.

The design, production and quality control of multi-stage has been done using the most up-to-date laboratory machines and equipment. Golden guarantee and fast and available hardware and software after-sales service and product authentication inquiry tracking code are other features of this product. The design and construction of this knob model is done based on the requirements of Iranian National Standard No. 6174 and International Standard EN 54-11.

شستی اعلام حریق کانونشنال ZI-CP 86 زیتکس

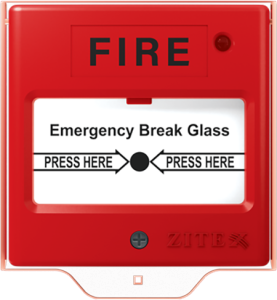

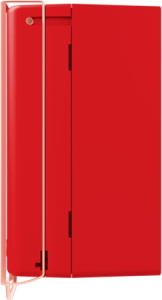

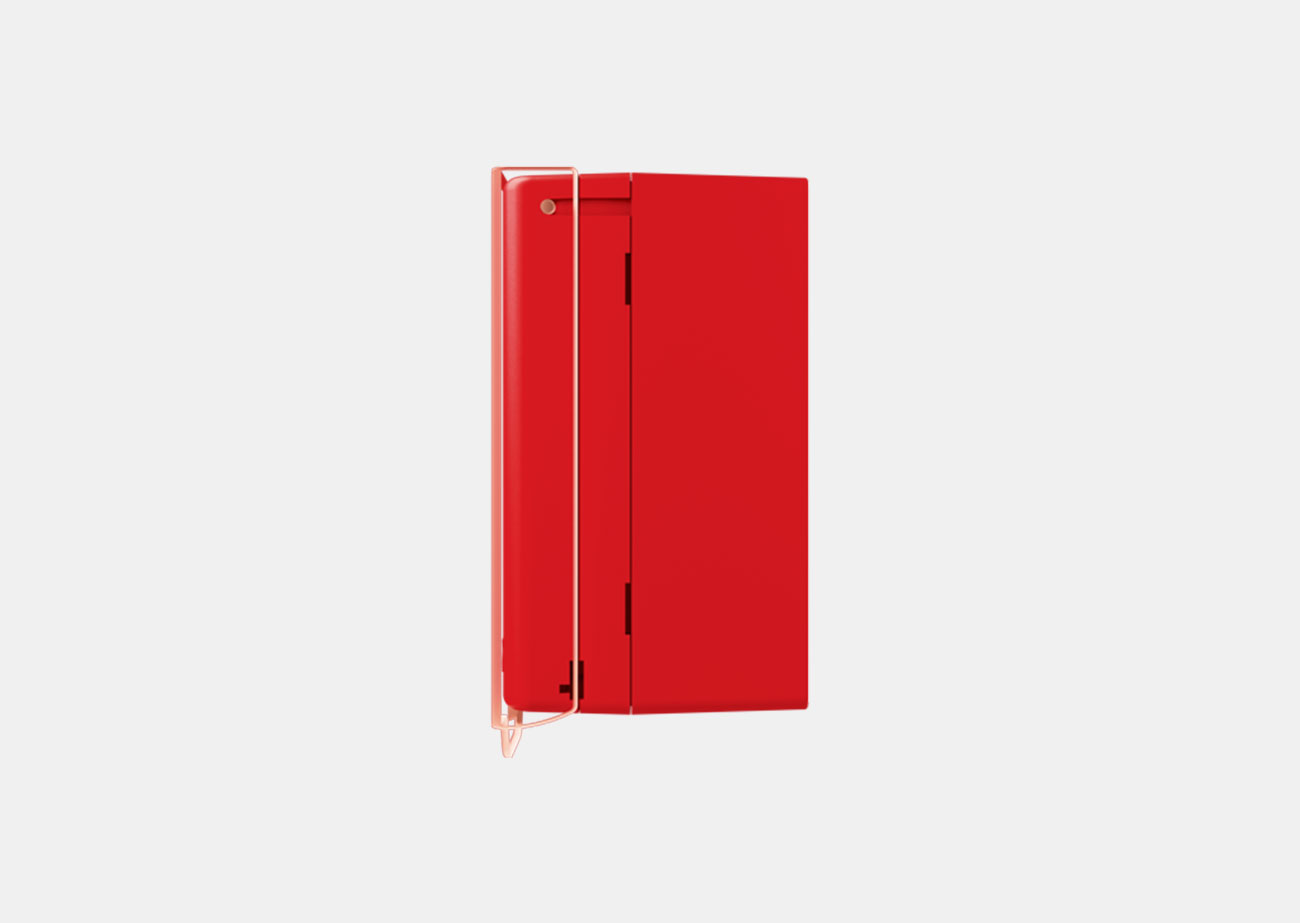

Product Size

شستی اعلام حریق کانونشنال ZI-CP 86 زیتکس

<        5.3 CM        >

شستی اعلام حریق کانونشنال ZI-CP 86 زیتکس

<        8.7 CM        >

Technical Specifications ZI-CP 86
Knob class Unressetable
Design standard EN-54-11 and ISIRI 6174
Voltage range 12-32 V D.C.
Current in normal voltage 24V D.C. 0 A
Current in alarm mode at voltage 24V D.C. 50 mA
Alarm resistance 1K Ω
Operating temperature range -15 °C — +80 °C
Functional humidity range (Non-condensing) 5% — 95% RH
How to connect 4- way terminal block
Degree of protection IP 40
Electrical contact material Metal
Conductor size of the installation terminal 1.5 mm2
Functional environment conditions Indoor use
Maximum contact resistance when closed 5 Ω
accessories Test Key
Installation conditions Flush and wall
Color / Body Material Red / Heat resistant ABS body
Dimensions 87 x 87 x 53 mm
Weight 165 g
