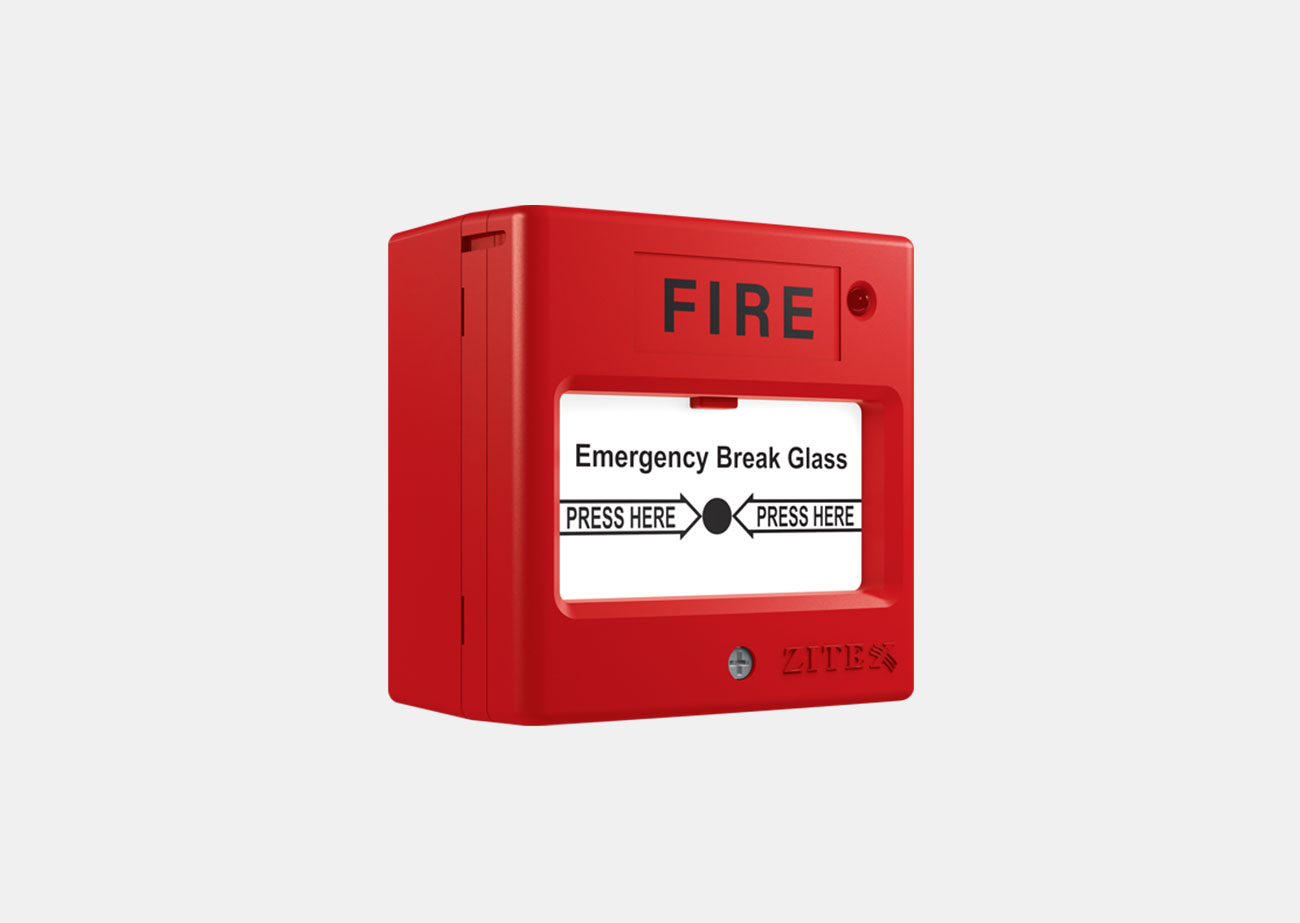

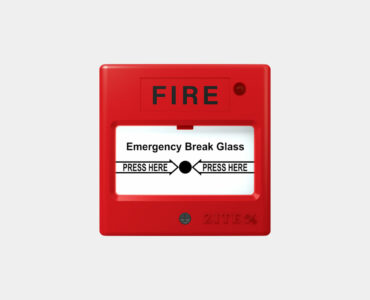

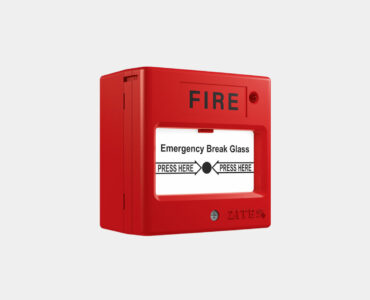

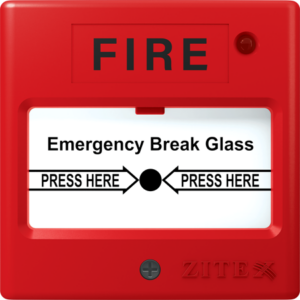

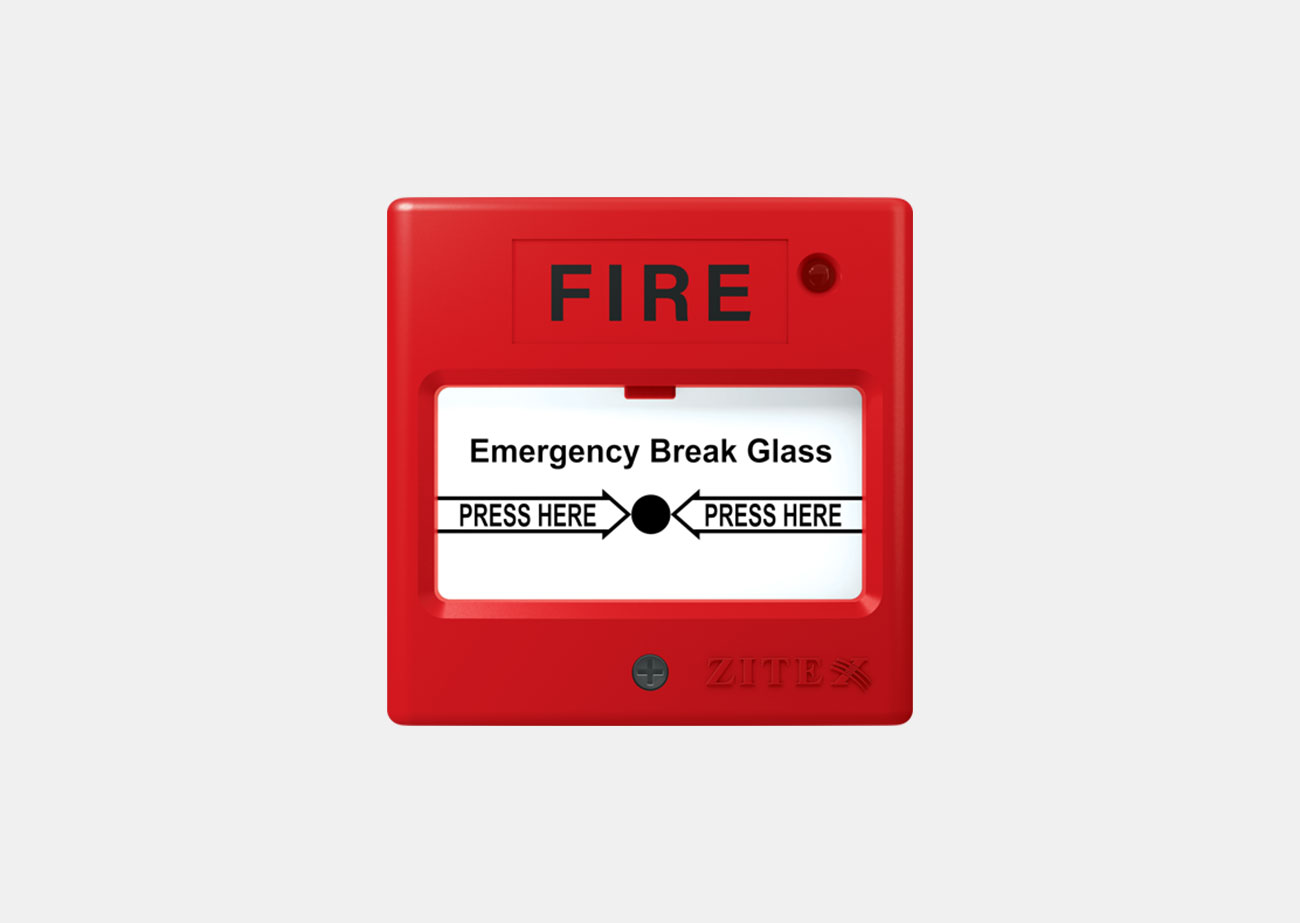

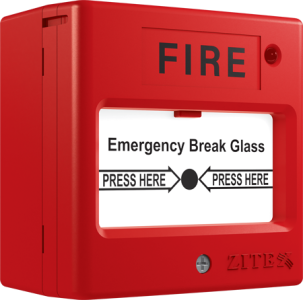

Conventional Manual Call Point

ZI-CP 85

Activation of this type of knob is done by breaking the windshield embedded in the knob. After receiving the appropriate impact in accordance with the requirements of National Standard of Iran No. 6174 and International Standard EN 54-11, the knob operates. The environments in which this type of knob can be used are indoor environments. The test key is designed to perform periodic tests and check the function of the thumb, which makes it possible to ensure the correct operation without the need to break the thumb glass.

Professional design and manufacturing (ABS)

Test Key

Reverse polarity protection

Plug socket terminal

Sufficient spacing for proper wiring

False Alarm Protection Technology (F.A.P)

SCRIPT FOR SLIDER CAROUSEL

Conventional Manual Call Point

ZI-CP 85

The knob is designed in such a way that there is enough space in the back for proper entry and exit of wires, and therefore wiring will be done in a principled and standard way. Double elevator terminals will also help in this regard. The body is made of specialized heat-resistant ABS, and the knob can withstand shock, vibration and voltage fluctuations well.

The knob is commanded via a microswitch system. Chrome plating of all metal parts will prevent them from rusting over time. By anticipating reverse polarity protection, incorrect connection of zone wires will not damage the knob. The design and construction standard of this fire alarm product is the national standard of Iran No. 6174 and the international standard EN 54-11.

Using the most up-to-date machinery and laboratory equipment, multi-stage production and quality control is performed on manufactured products. Golden guarantee and fast and available hardware and software after-sales service, as well as the presence of a tracking code to inquire about the authenticity of the product are other benefits of this product.

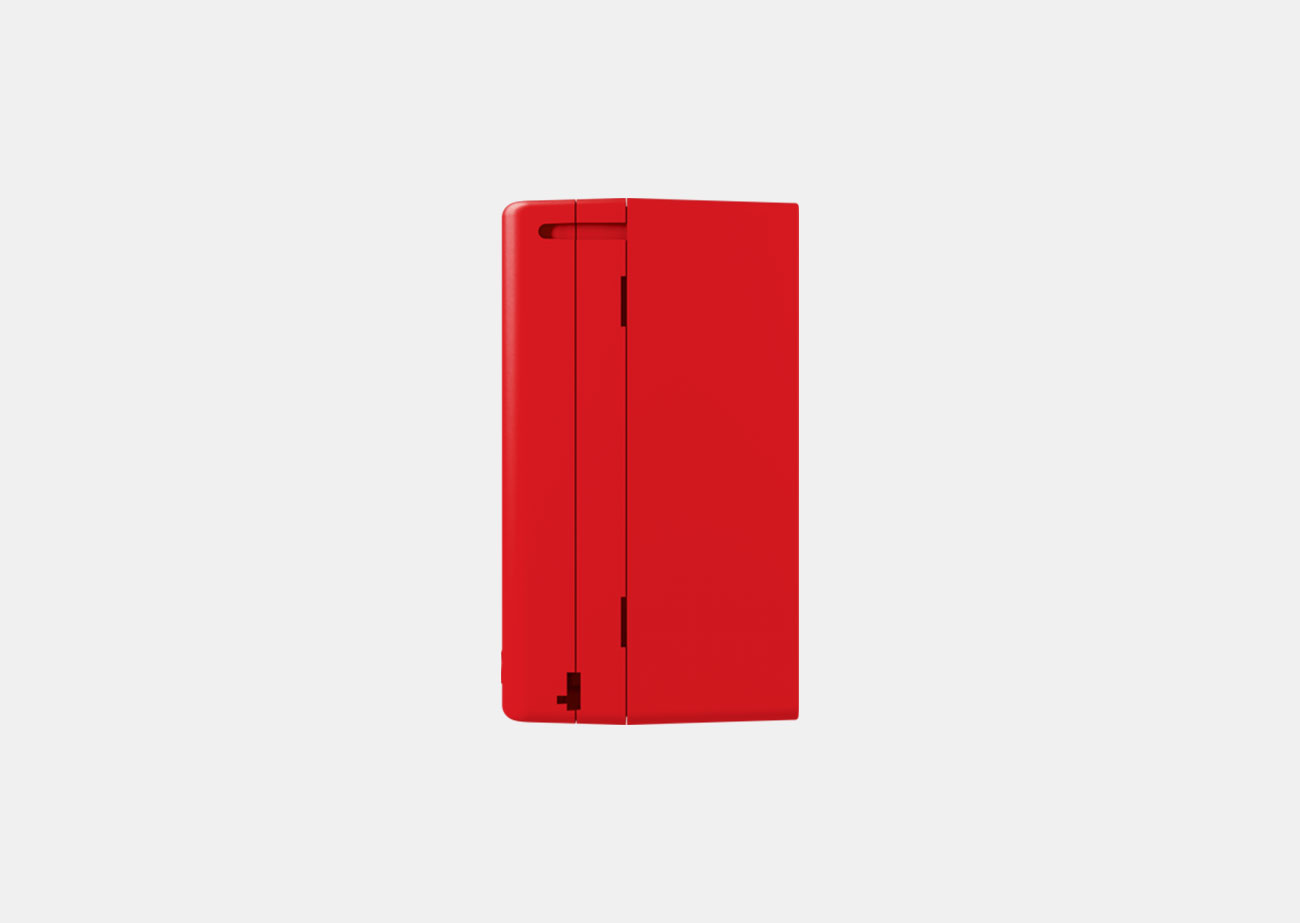

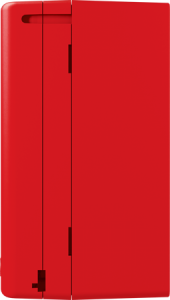

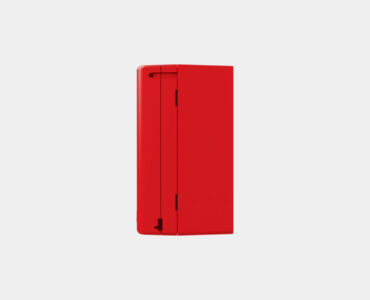

Product Size

< 5.1 CM >

< 8.7 CM >

Technical Specifications	ZI-CP 85
Knob class	Unressetable
Design standard	EN-54-11 and ISIRI 6174
Voltage range	12-32 V D.C.
Current in normal voltage 24V D.C.	0 A
Current in alarm mode at voltage 24V D.C.	50 mA
Alarm resistance	1K Ω
Operating temperature range	-15 °C — +80 °C
Functional humidity range	(Non-condensing) 5% — 95% RH
How to connect	4- way terminal block
Degree of protection	IP 40
Electrical contact material	Metal
Conductor size of the installation terminal	1.5 mm²
Functional environment conditions	Indoor use
Maximum contact resistance when closed	5 Ω
accessories	Test Key
Installation conditions	Flush and wall
Color / Body Material	Red / Heat resistant ABS body
Dimensions	87 x 87 x 51 mm
Weight	135 g
