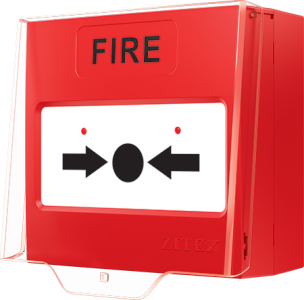

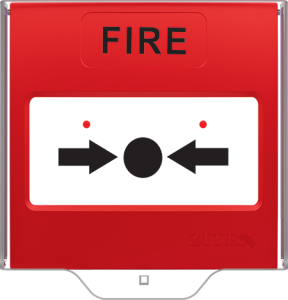

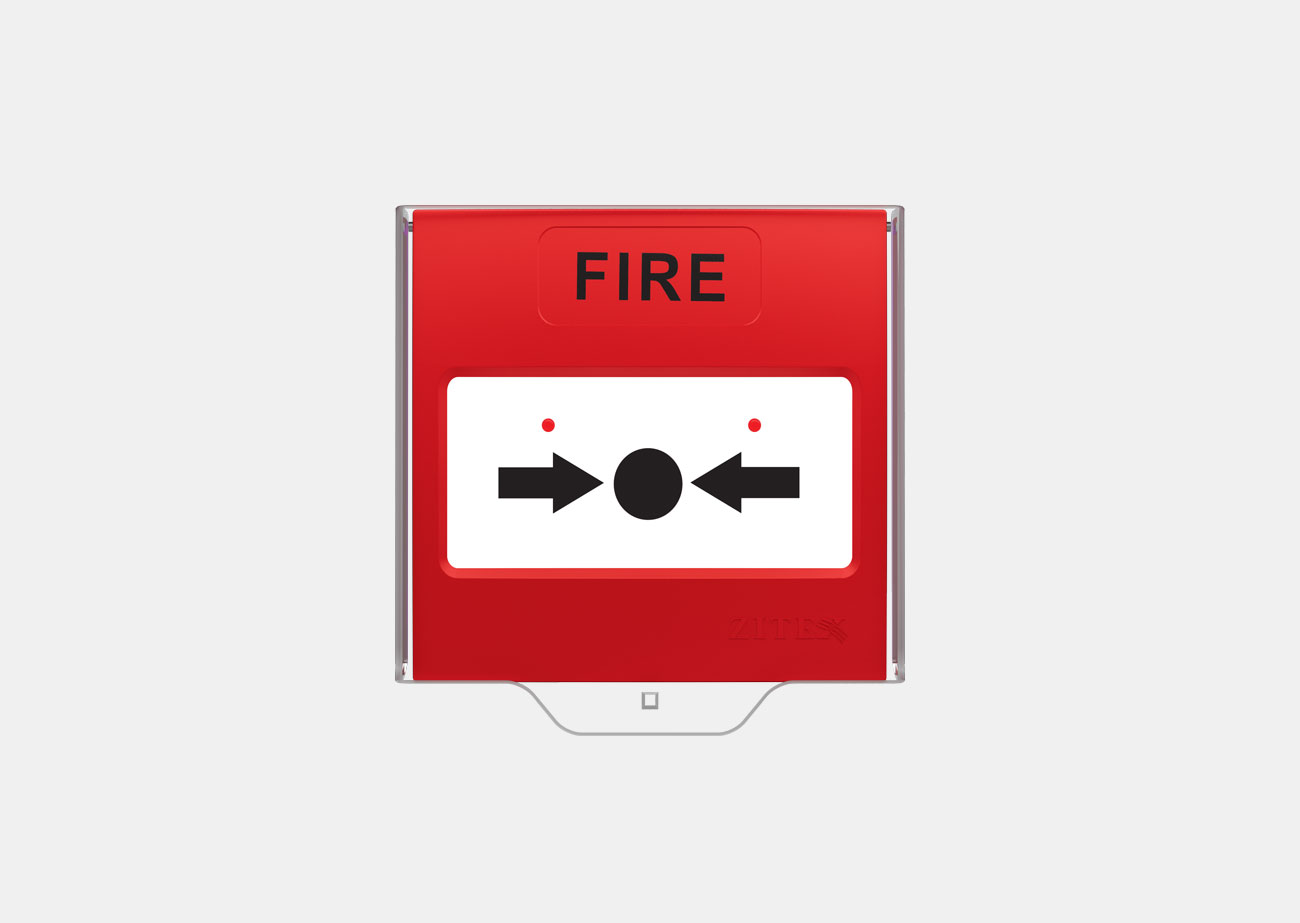

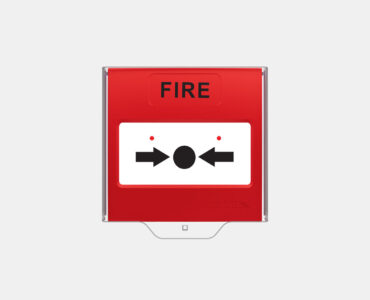

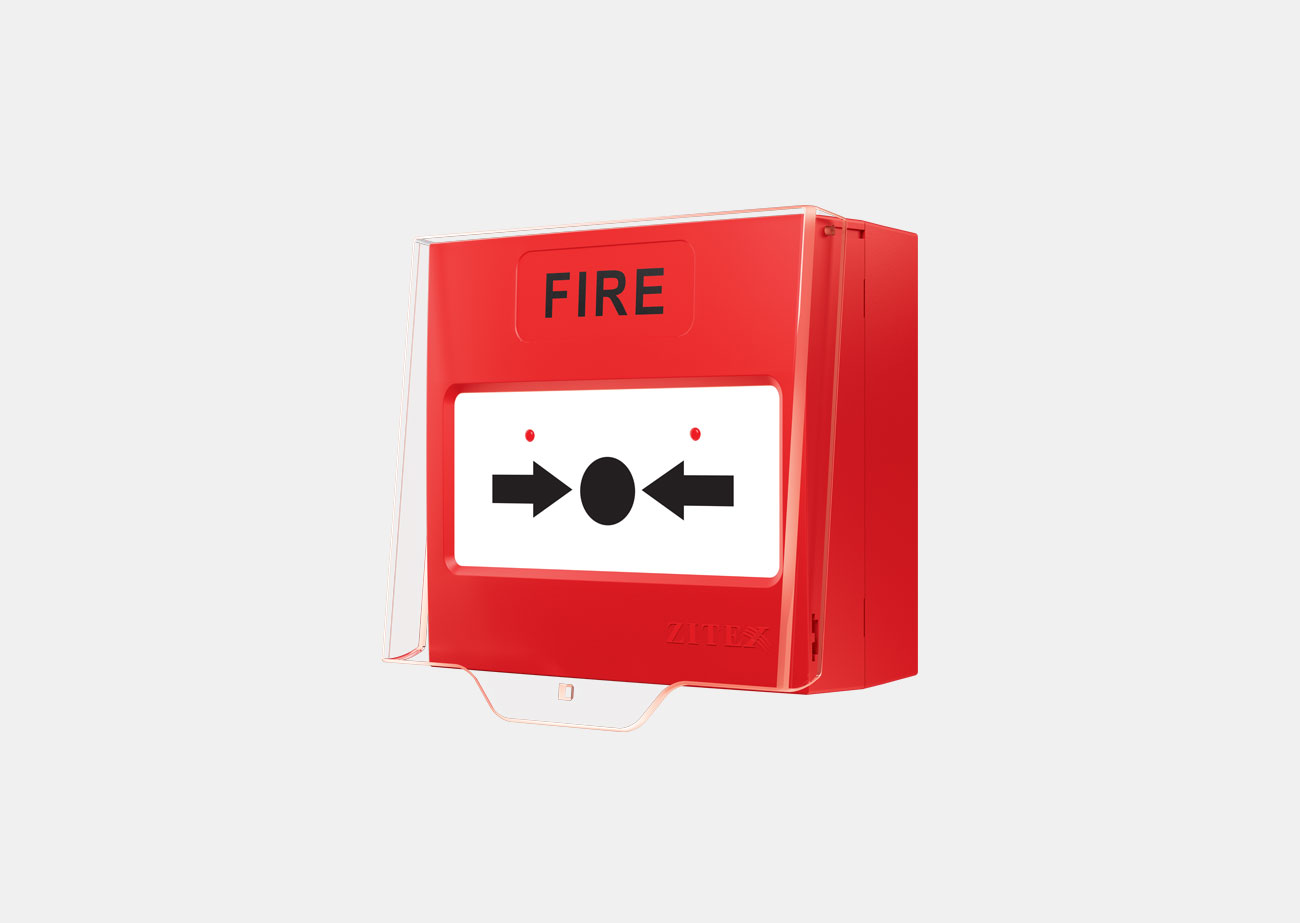

Addressable Manual Call Point

ZX-CP 4000 AD

Like all ZITEX addressable devices, the fire alarm knob has an internal insulator to protect the rest of the system in the event of a short circuit in the wiring. ABS body with professional and engineering design, resistant to heat, shock, vibration and voltage fluctuations. ZITEX proprietary protocol enables soft addressing operations from the panel and manually through the programmer. In designing and manufacturing this product, the requirements of National Standard of Iran No. 6174 and International Standards EN 54-11, 17 have been considered.

It has an internal insulator

Software addressing (Soft Addressing) from the panel or using Programmer

Reversible system with return key without the need to open and close the call point

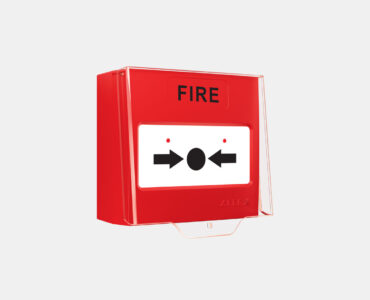

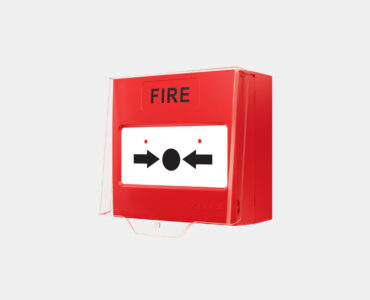

Glass protective cover against sudden and unnecessary collisions

False Alarm Probability Technology (F.A.P)


Addressable Manual Call Point ZX-CP 4000 AD

With the software settings, you can select the type of knob output when activated: alarm or evacuation command. It is also possible to receive a dry relay output when the knob is activated. The two LEDs continuously indicate the operating status of the knob, which can be activated / deactivated when the LED is blinking in Standby mode. In addition, the knob can be electronically deactivated / activated in special circumstances. Identification feature is provided to determine the exact location of the knob in the loop wiring. Loop wires, in addition to supplying voltage to the device bilaterally, are also responsible for sending and receiving data as Serial Data.

شستی آدرس‌پذیر ZX-CP 4000 AD زیتکس

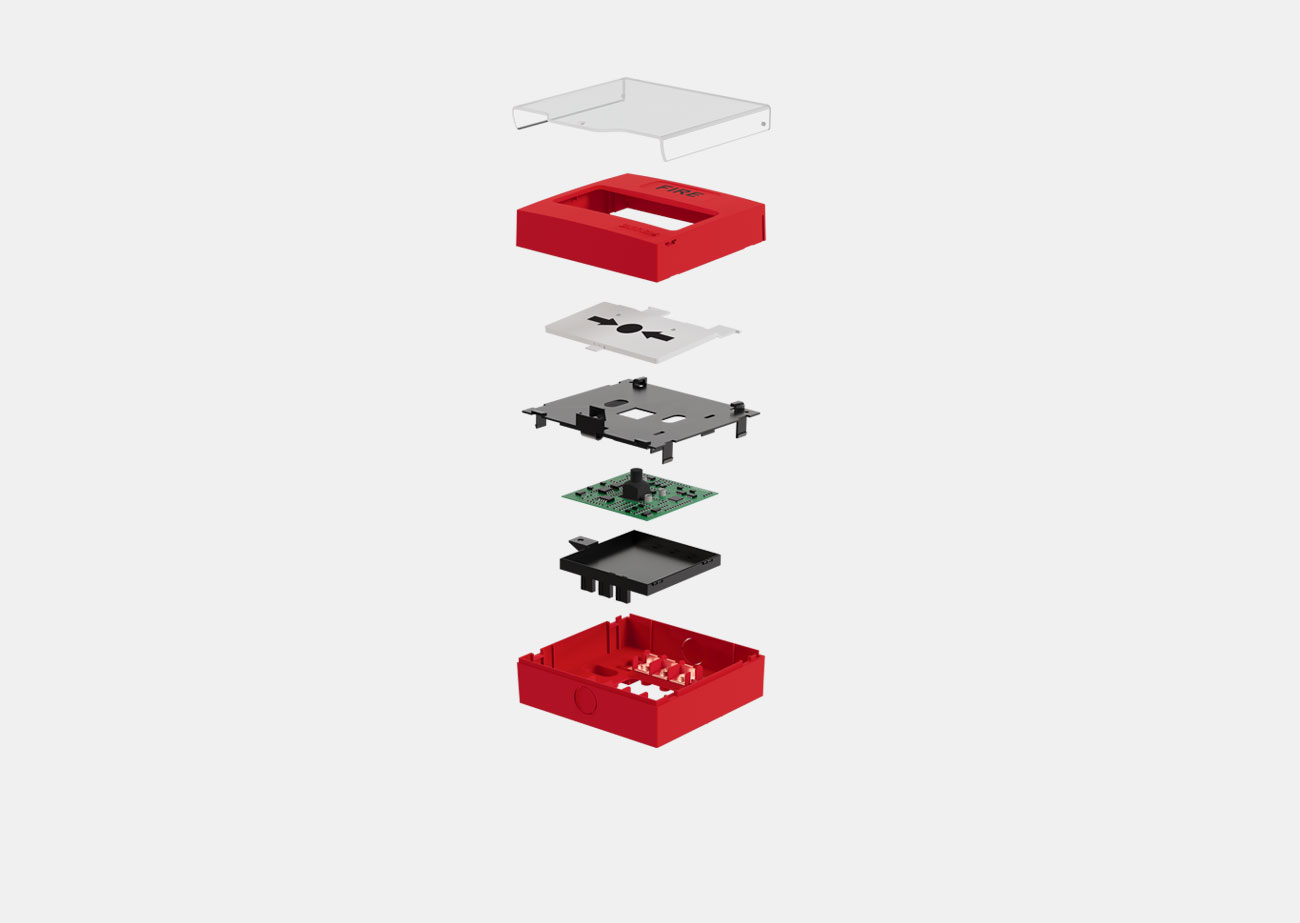

In the design of the knob body, enough space is provided behind it and double elevator terminals are used and all metal parts are covered with chrome plating to protect against rust, thus easy, principled, fast and standard installation experience. Be. Reverse polarity protection is designed and applied in the knob circuit. The operating mechanism of the knob is reversible and there is a reset key to return the knob to normal without the need to open and close the knob. To prevent unwanted activation of the knob due to sudden and unnecessary collisions, a protective glass cover S is provided on it.

The knob circuit is also made of two-layer metallic fiberglass and the protective layer against moisture, vapors and corrosive materials significantly increases the life of the circuit. Specialized programming and production of circuits using modern equipment based on SMT technology is another advantage of this product. Like all ZITEX products, F.A.P Technology is used in this device. Design, production and quality control of multi-stage by the latest machinery and laboratory equipment, golden warranty and after-sales service of hardware and software, fast and available, tracking code for product authenticity inquiry and having the national standard mark of Iran, guaranteeing product quality Is.

شستی آدرس‌پذیر ZX-CP 4000 AD زیتکس

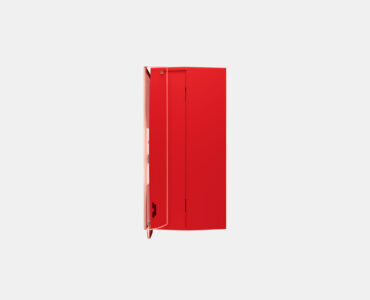

Product Size

شستی آدرس‌پذیر ZX-CP 4000 AD زیتکس

<        4.6 CM        >

شستی آدرس‌پذیر ZX-CP 4000 AD زیتکس

<        8.6 CM        >

Technical Specifications ZX-CP 4000 AD
Design standard EN-54-11 , EN 54-17
input voltage 19 – 30 V D.C.
Element type Resettable
Flow in normal mode < 300 μA
Flow in fire alarm mode < 3 mA
Functional temperature -15 °C — +80 °C
Functional humidity (Non-condensing) 5% — 95% RH
Degree of protection IP 40
Dimensions 86 x 86 x 46 mm
Weight 150 g
