Addressable Heat Detector

ZX-HD 7000 AD

Advanced technology in the design of ZITEX addressable devices has made these devices cover all the needs of the project. ZITEX addressable heat detector, model ZX-HD 7000 AD with internal insulator and three adjustable heat classes from the panel or CONFIGURATION software (A1R temperature classes sensitive to temperature rise rate and constant temperature threshold, A2S and BS threshold sensitive It has a constant temperature, in accordance with the international standard EN 54-5). The requirements of National Standard 3710 and International Standard EN 54-5 are fully complied with in this detector. The body of the detector is made of specialized ABS resistant to heat, shock and vibration. Soft Addressing technology allows automatic addressing from the panel, and in addition, manual addressing can be done through the Programmer.

It has an internal insulator
Software addressing (Soft Addressing) from the panel or using Programmer
Three thermally adjustable heat classes from the panel or software
False Alarm Probability Technology (F.A.P)

Addressable Heat Detector ZX-HD 7000 AD

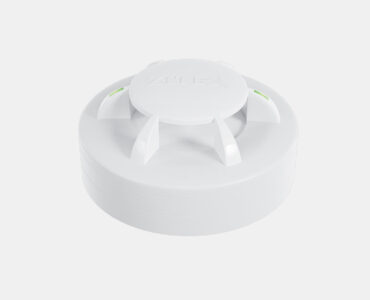

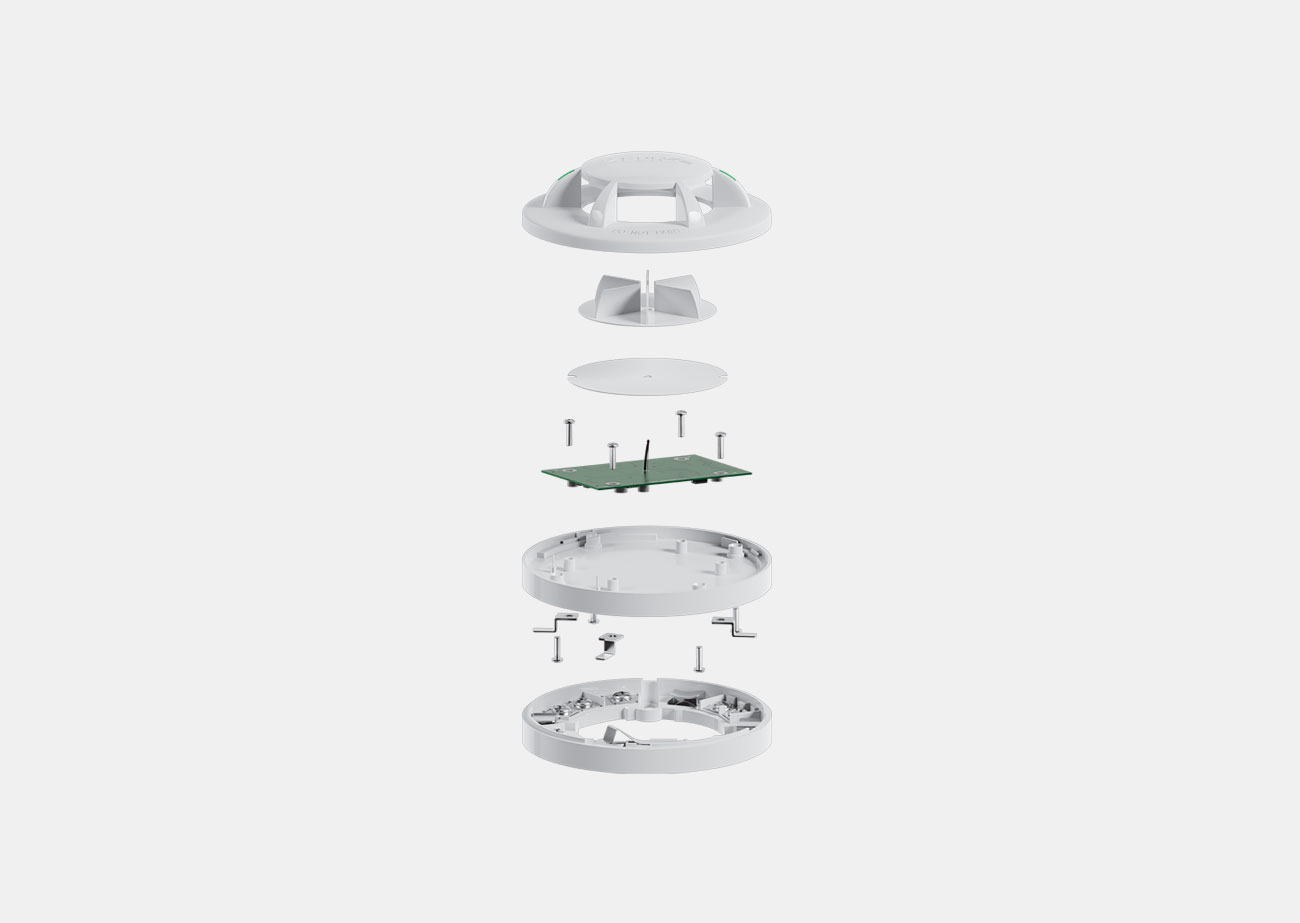

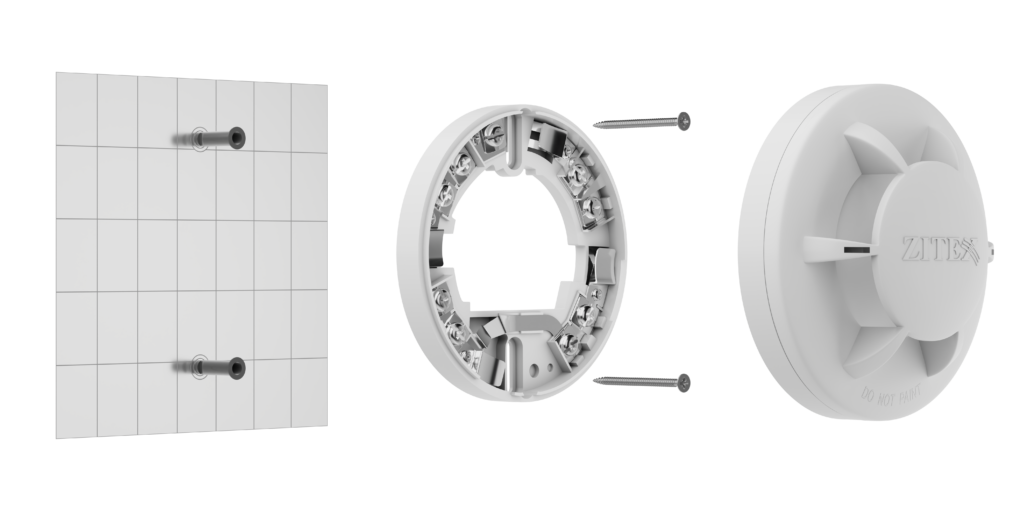

The design of the body, base and components used in the detector provides these features: two functional indicators with 360-degree visibility that show the normal status (flashing green) and alarm (fixed red) of the detector; Allocate enough space for loop wires and remote indicator; Double elevator terminals for quick, easy and standard installation; And chrome plating of all metal parts to protect against rust.

The temperature class of the detector can be easily set to Day and Night. Due to the two-way communication between the panel and the devices, the instantaneous temperature of the thermal sensor can be read. In addition, the detector LED can be disabled in Standby mode. In certain circumstances, it is also possible to electronically activate / deactivate the detector. Identification feature can be used to determine the location of the detector inside the loop. The detector voltage is supplied through a loop and the sending and receiving of data is done as serial data through two wires. Reverse polarity protection and the ability to connect to the remote indicator are also provided.

دتکتور حرارتی آدرس پذیر ZX-HD 7000 AD زیتکس

Common features of this product with other ZITEX products include double-layer fiberglass circuit with a layer resistant to moisture, vapors and corrosive materials, production of electronic boards using modern SMT devices and specialized programming. One of the unique features of all ZITEX products is the F.A.P noise and alarm removal technology, which is no exception to this rule. Design, production and quality control are performed by the most up-to-date machinery and laboratory equipment, along with a golden guarantee, after-sales service for hardware and software, a tracking code for the authenticity of goods, and most importantly, the national standard license of Iran, peace of mind and Provide peace of mind for the consumer.

دتکتور حرارتی آدرس پذیر ZX-HD 7000 AD زیتکس

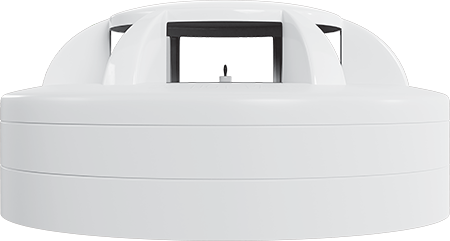

Product Size

دتکتور حرارتی آدرس پذیر ZX-HD 7000 AD زیتکس

<        5.3 CM        >

دتکتور حرارتی آدرس پذیر ZX-HD 7000 AD زیتکس

<        9.8 CM        >

Technical Specifications ZX-HD 7000 AD
Design standard EN 54-5 , EN 54-17
Functional voltage 19-30 V D.C.
Flow in normal mode < 300 μA
Flow in fire alarm mode < 7 mA
Functional temperature -15 °C — +80 °C
Functional humidity (Non-condensing) 5% — 95% RH
Fire alarm conditions
A1R : ≥10°C/min
A2S : ≥60°C
BS : ≥75°C
Area covered According to EN 5839
Degree of protection IP 40
Start time < 10 s
Dimensions 98 x 53 mm
Weight 142 g
